Up To 40
MILES RANGE
500w
MID DRIVE MOTOR
4-Year
WARRANTY

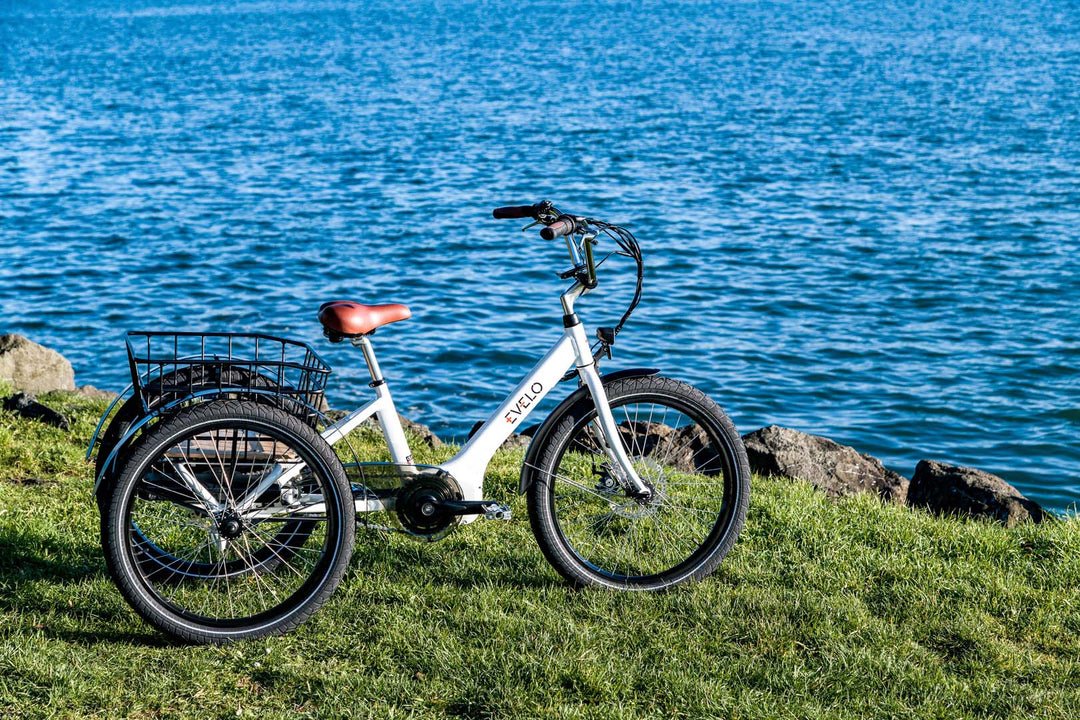

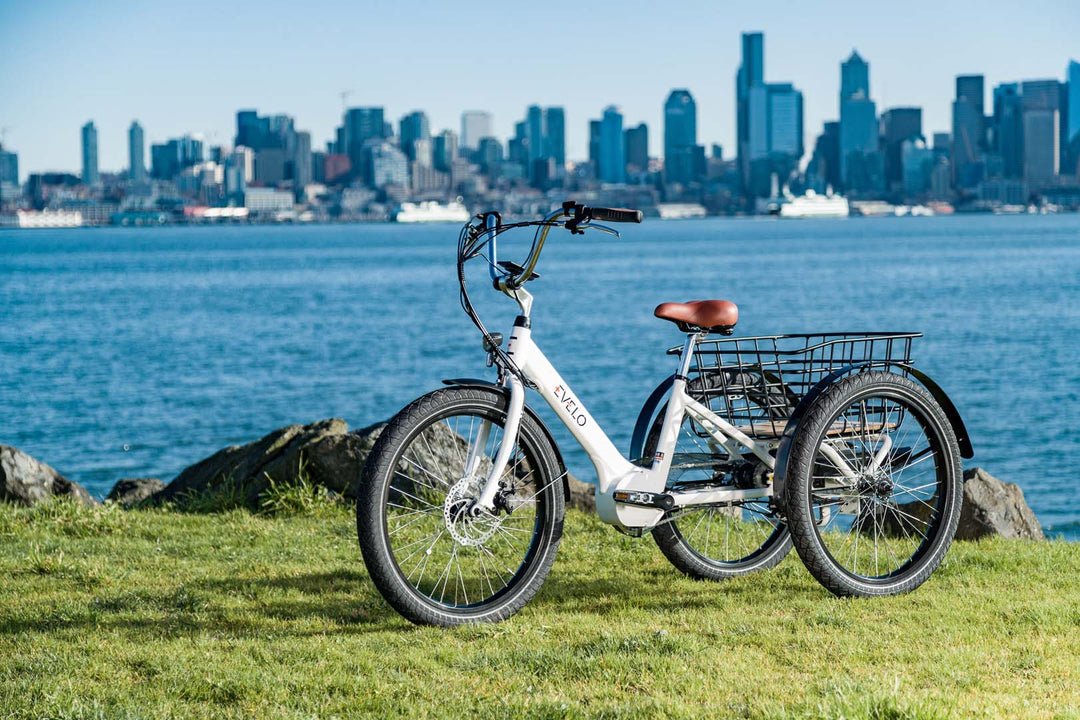

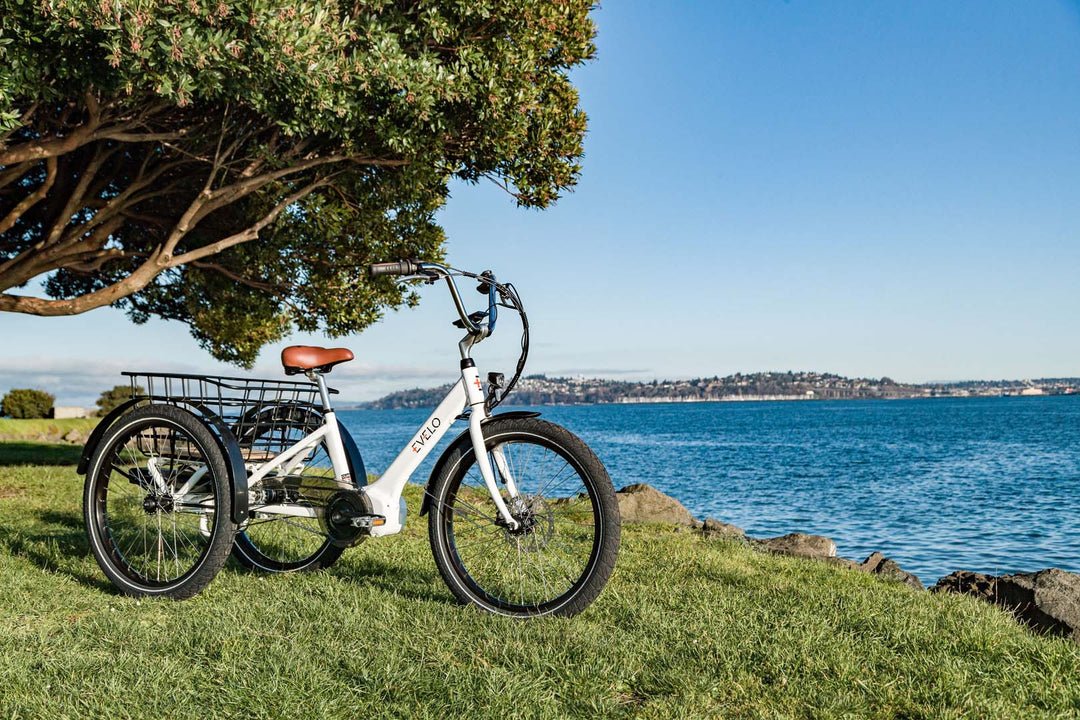

Compass Electric Tricycle Features

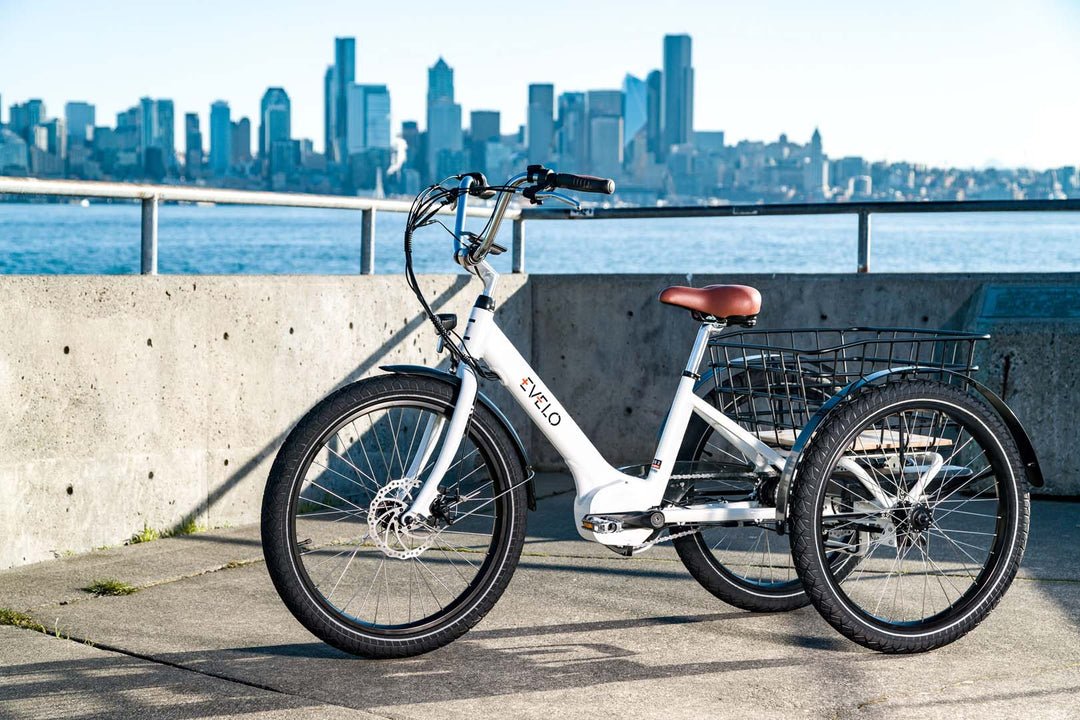

Stable frame that's easy to get on and off
Stability is important on a tricycle, so a sturdy frame is the first building block for the best trike possible. EVELO engineers have designed the Compass to offer the lowest point of entry possible, making it easy to get on and off the bike for both men and women. Our step-through frame has additional reinforcements for the strongest and safest construction possible. Take your time, get comfortable on the saddle, and begin your journey.

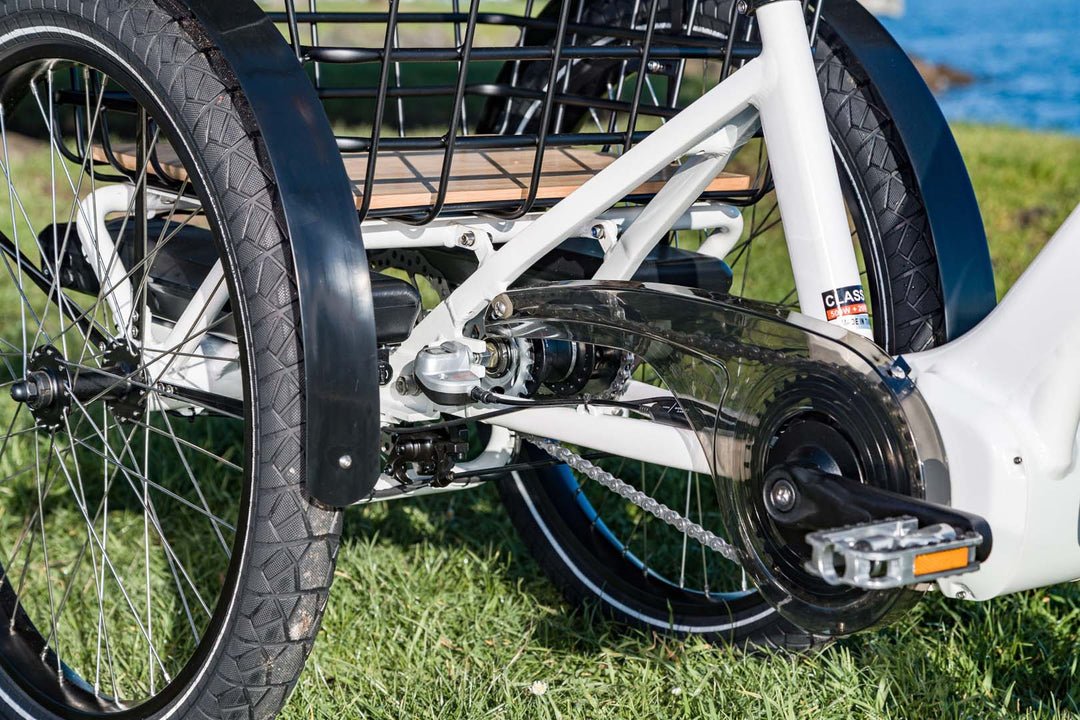

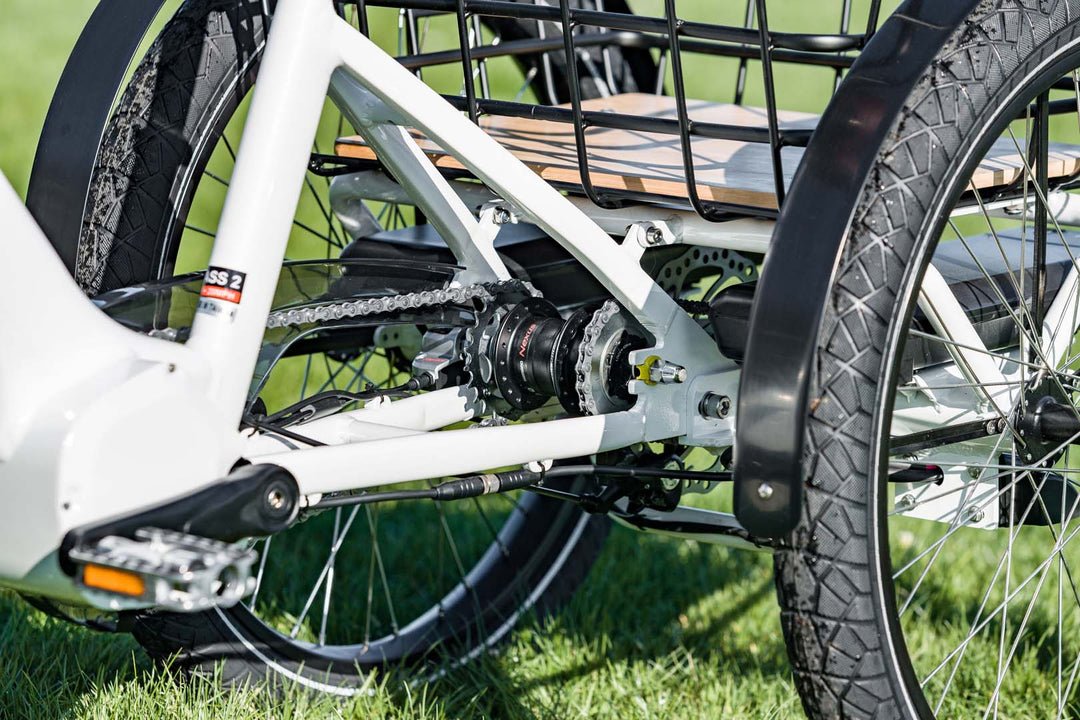

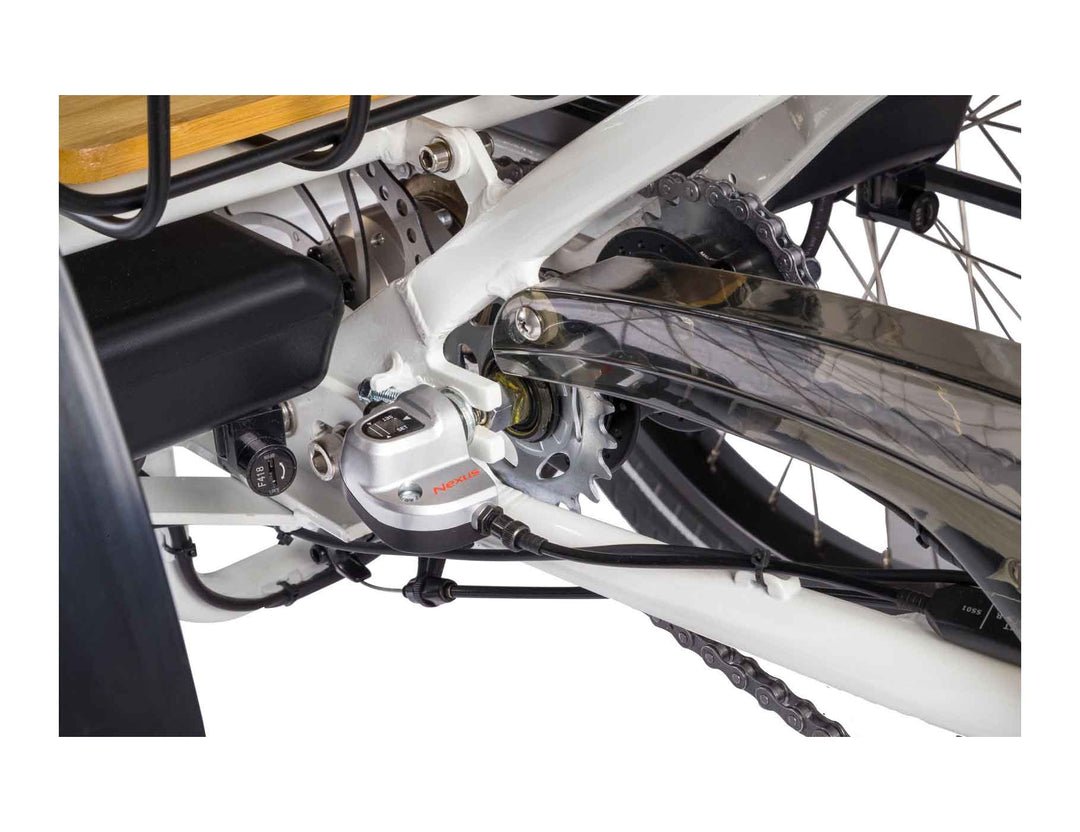

Safer turning with true two wheel drive

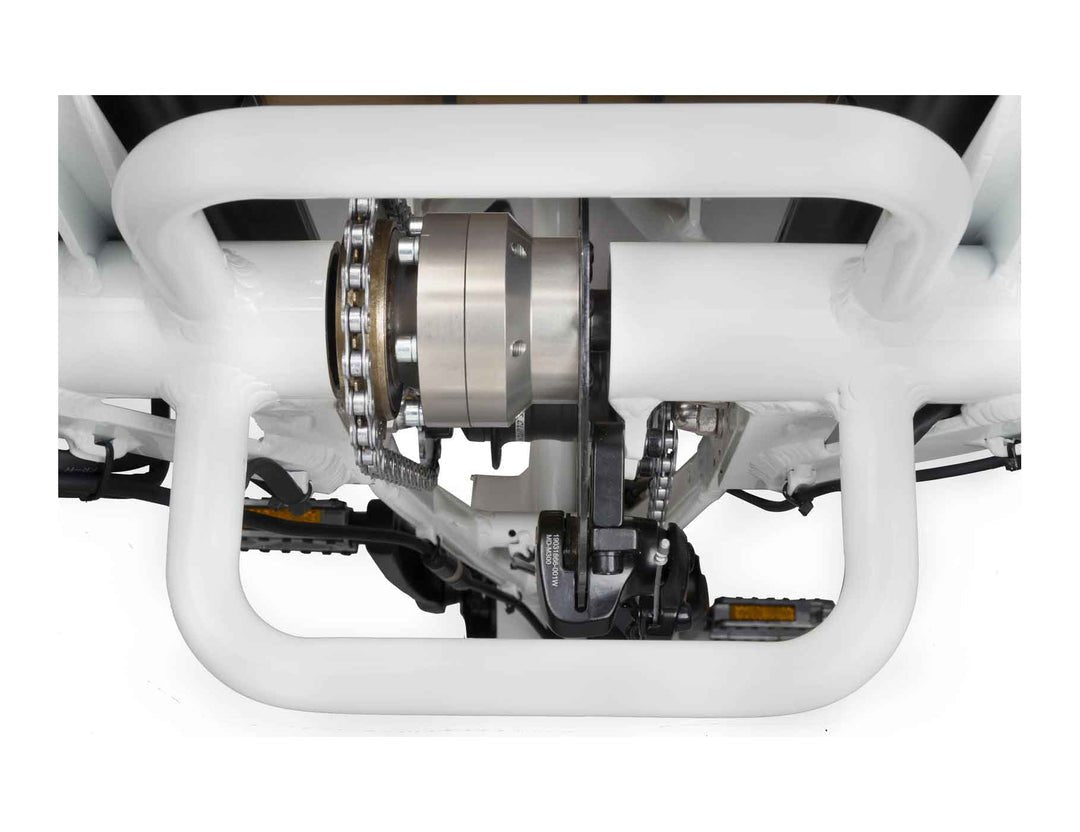

Traction is important on tricycles, since the weight of the rider is distributed between three wheels, there is less weight on each wheel. Front wheel drive trikes tend to peel out in loose terrain or wet roads, as do one wheel rear drive tricycles. The Compass has true two wheel drive, with the power from the mid drive motor going equally to both rear wheels. This means more traction, safer turning, and a more stable ride overall.
Quick charge times and up to a 40 mile range
Go the extra mile with EVELO’s top-tier Li-ion cell technology. Our large semi-integrated frame battery offers extended range, and is easily removed for charging on or off your bicycle. With short charge times and up to 40 miles of range for your average rider, you can ride and explore more, and spend less time worrying about when to head back home. The Compass is also Dual Battery ready, so you can easily double your range to 80+ miles per charge with an additional battery, and run them both simultaneously for a seamless journey.
Arrives Nearly Fully Assembled
We ship Compass models LTL Freight directly to your door with all three wheels attached, so only minor assembly is required. Once your Compass arrives, you will need to install the pedals, and attach the handlebar - thats it.
Unpacking the Compass requires no prior or specialized mechanical knowledge. Our new packaging is designed to make receiving and unpacking your Compass as easy as possible, and will get you riding as soon as possible, with no need to transport your Compass home from the bicycle shop.
Bringing back the fun & freedom of riding bikes for the last 10-years.
Bringing back the fun & freedom of riding bikes for the last 10-years.

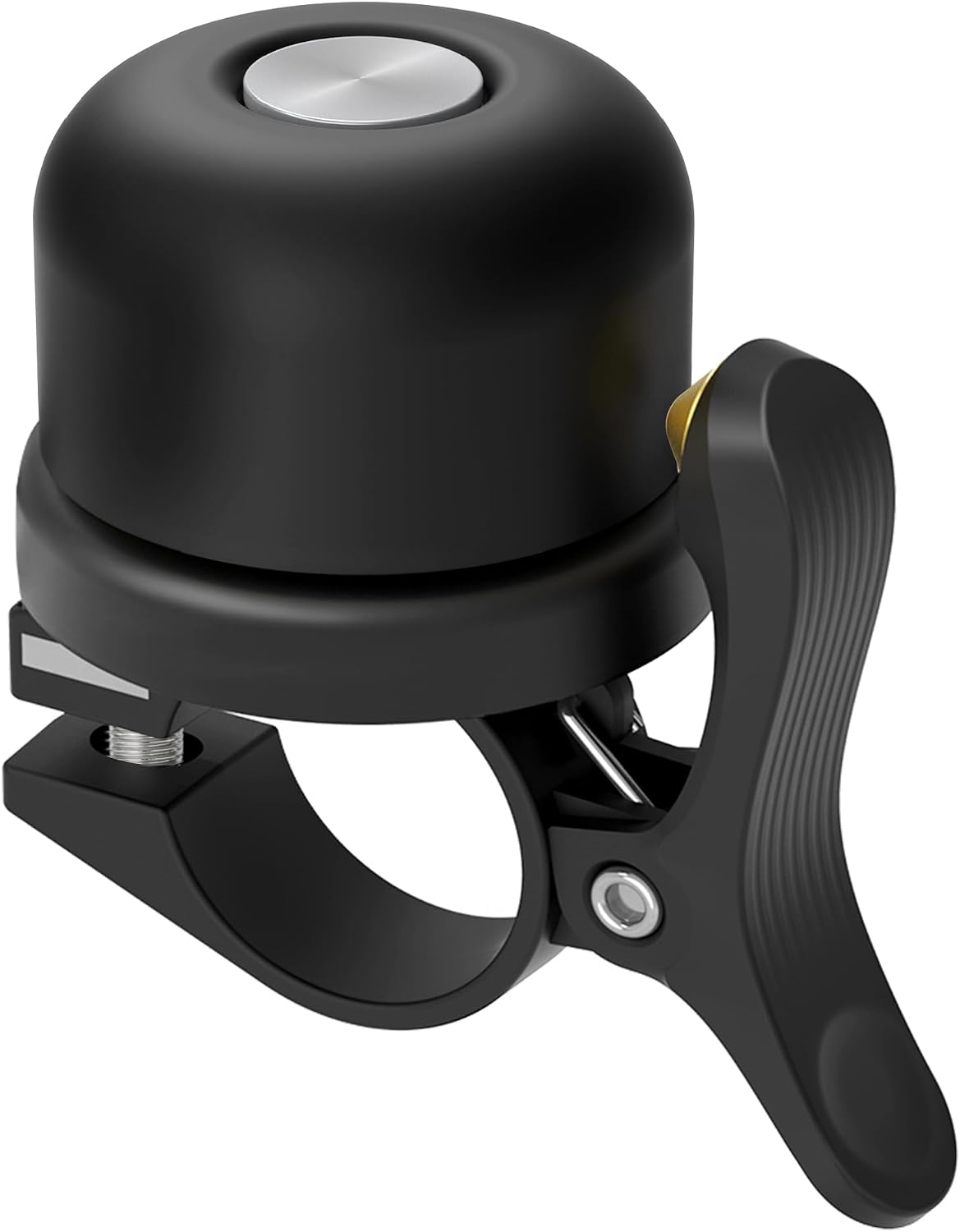

Popular Accessories
Product Specifications

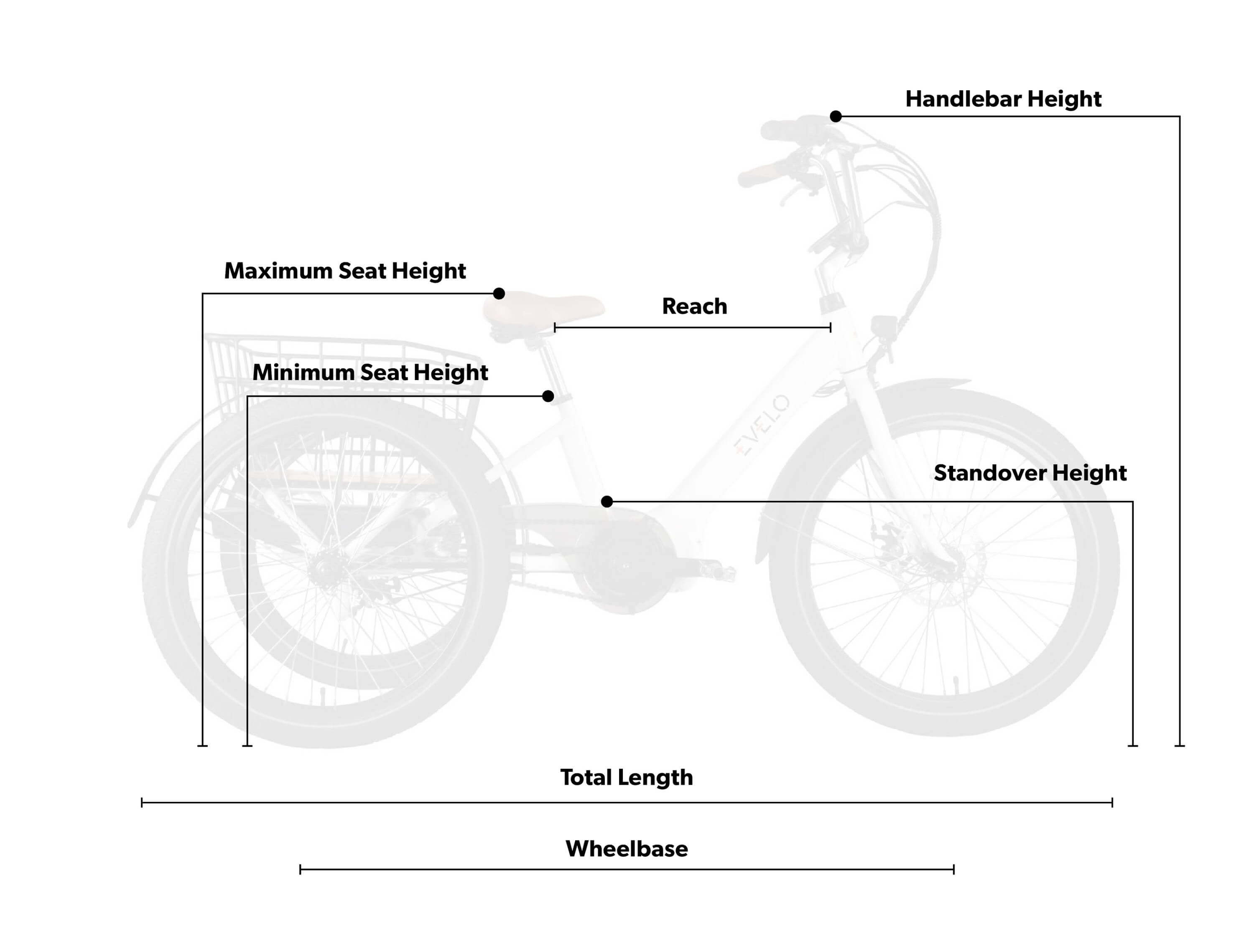

Sizing & Dimensions
SIZING |
Recommended Rider Heights 4'10" - 6'2" Seat Height (Minimum / Maximum) 30" / 38" Seat to Pedal (Lowest / Highest) 25" / 33" Standover Height 15" Reach (Saddle to Handlebar) 22" Handlebar Height 42.5" Total Length (Tire to Tire) 70" Wheelbase (Center to Center) 42" |
Bike Specifications

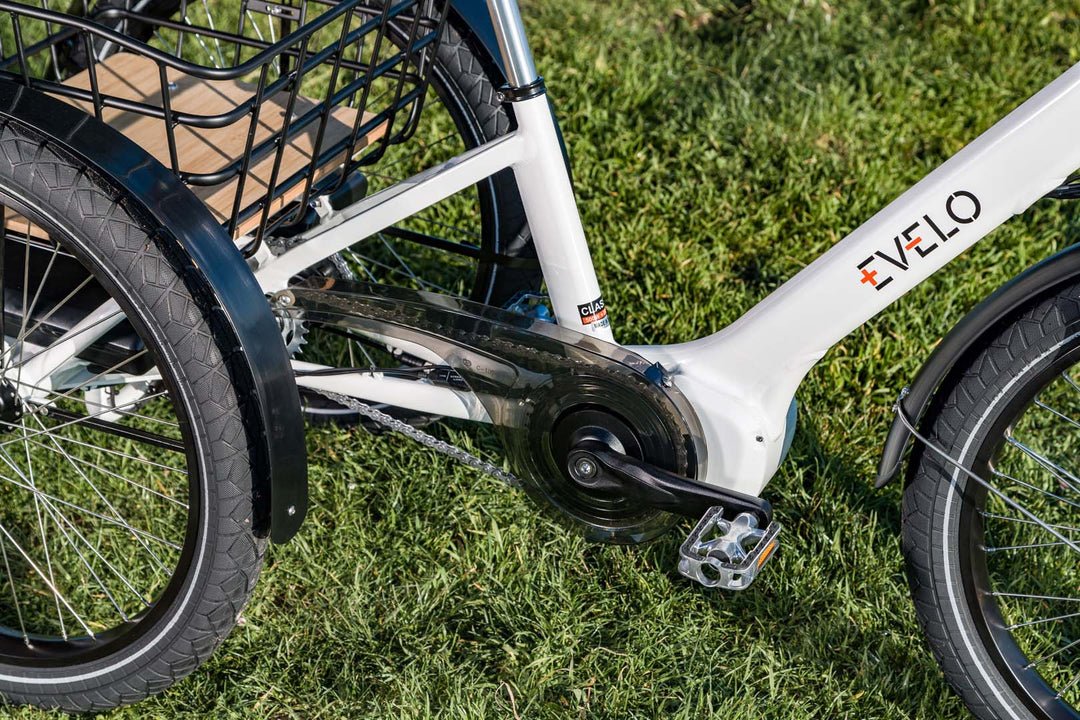

Motor |

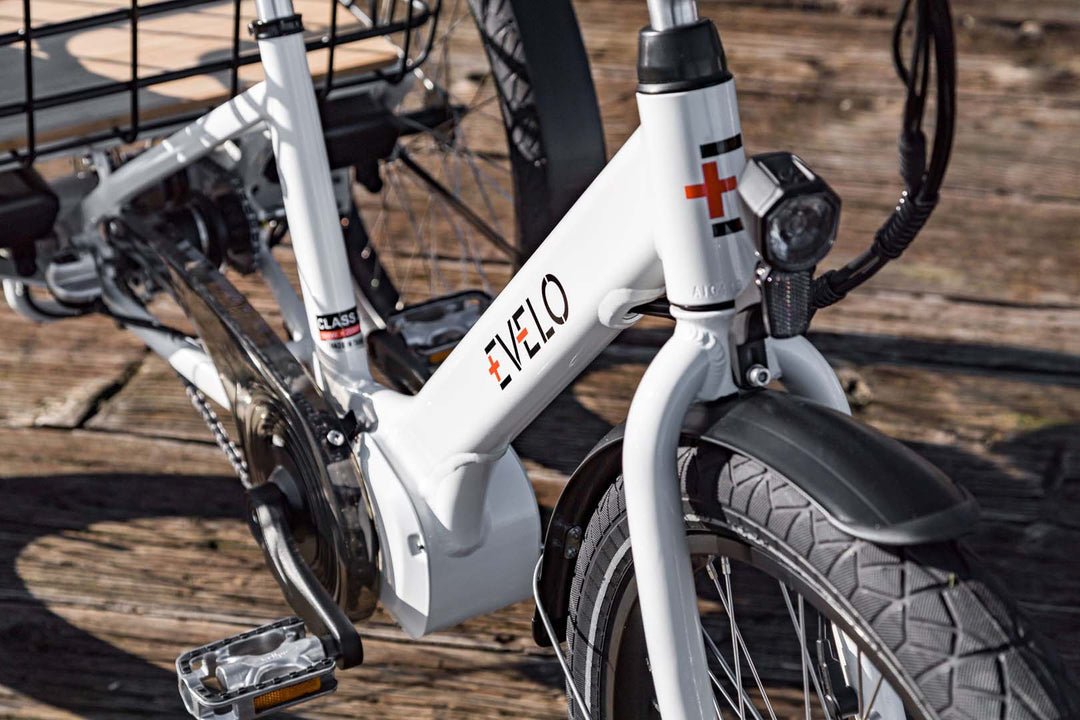

500W Bafang Custom Mid-Drive Brushless Motor, 48V |
Battery |
Panasonic Lithium-Ion 48V 10.5Ah with Advanced Battery Management Software |
Charger |
48V Smart Charger |
Maximum Motor-Assisted Speed |
20 Miles Per Hour, User Adjustable |
Range |
Up to 40 Miles on Pedal-Assist, 80 Miles with Battery Add-On |
Electric Assist |
Multiple Levels, Plus Electric-Only (via Throttle) |
Frame |
6061 High-Strength Aluminum Alloy |
Fork |
Custom 6061 Alloy with Steel Steerer Tube, Designed for Fenders |
Wheel |
36H 45mm wide Double Wall Alloy Rims with 13g Spokes |
Tire |
CST Cyclops 24" x 2.4″ |
Brakes |
Tektro MD-M300 Disc Brakes |
Seat |

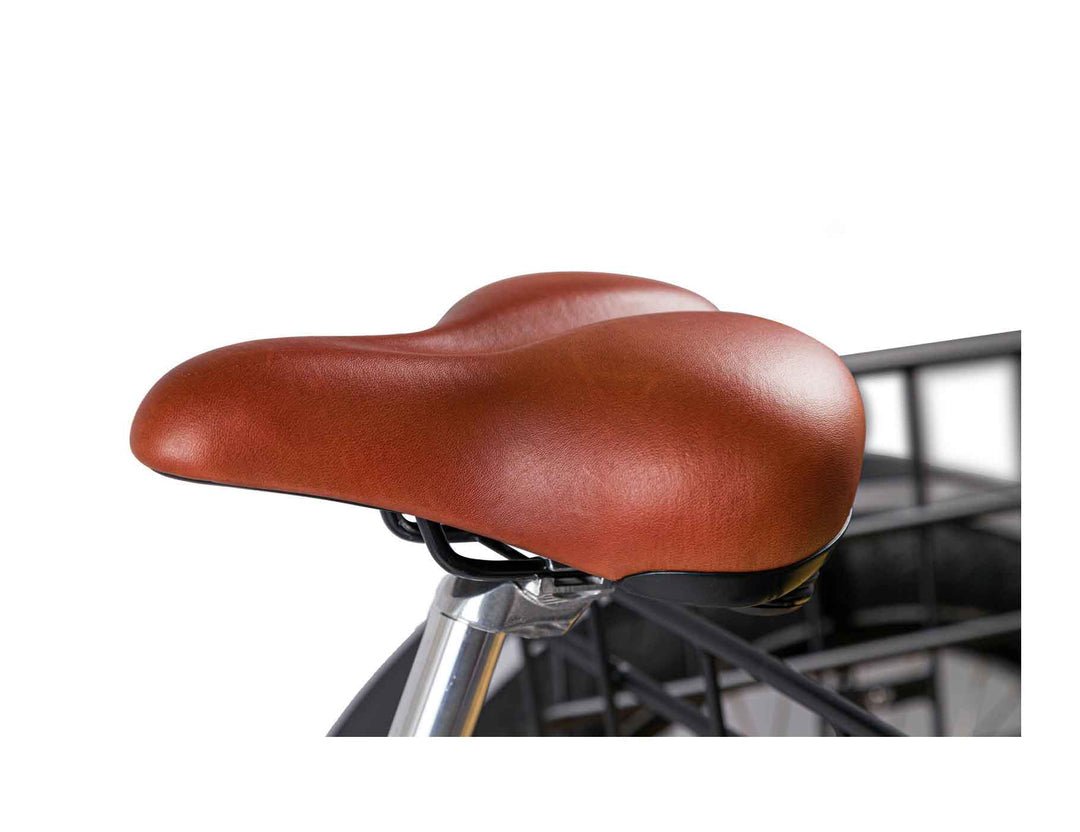

Extra Wide Velo Breeze with Memory Foam |
Stem / Handlebar |

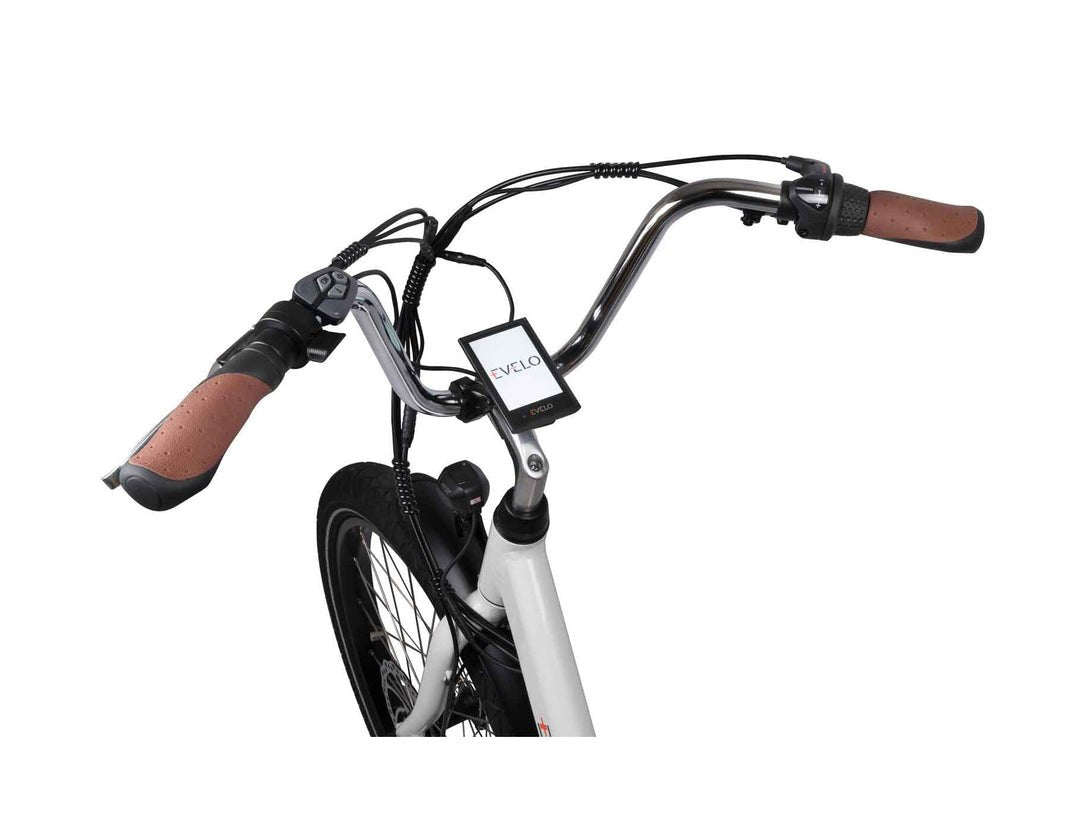

EVELO Alloy Stem, 5” Rise Steel Handlebar |

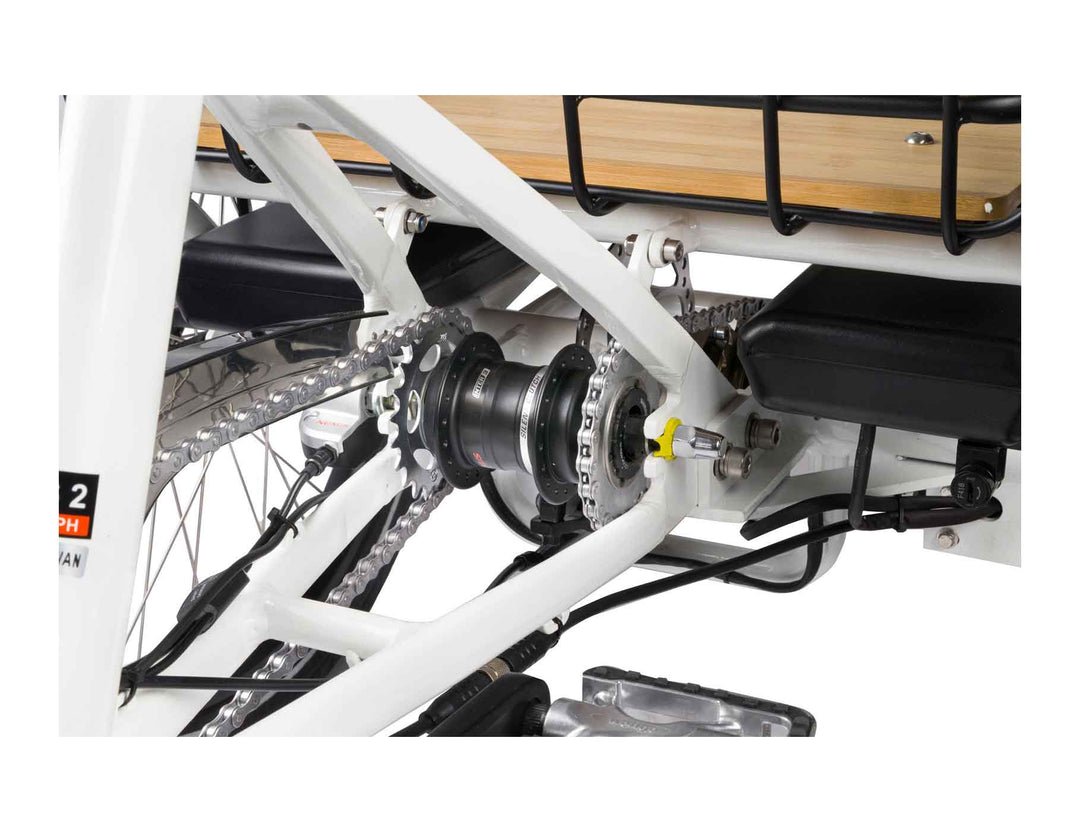

Speeds |
Shimano 3-Speed IGH Transmission |

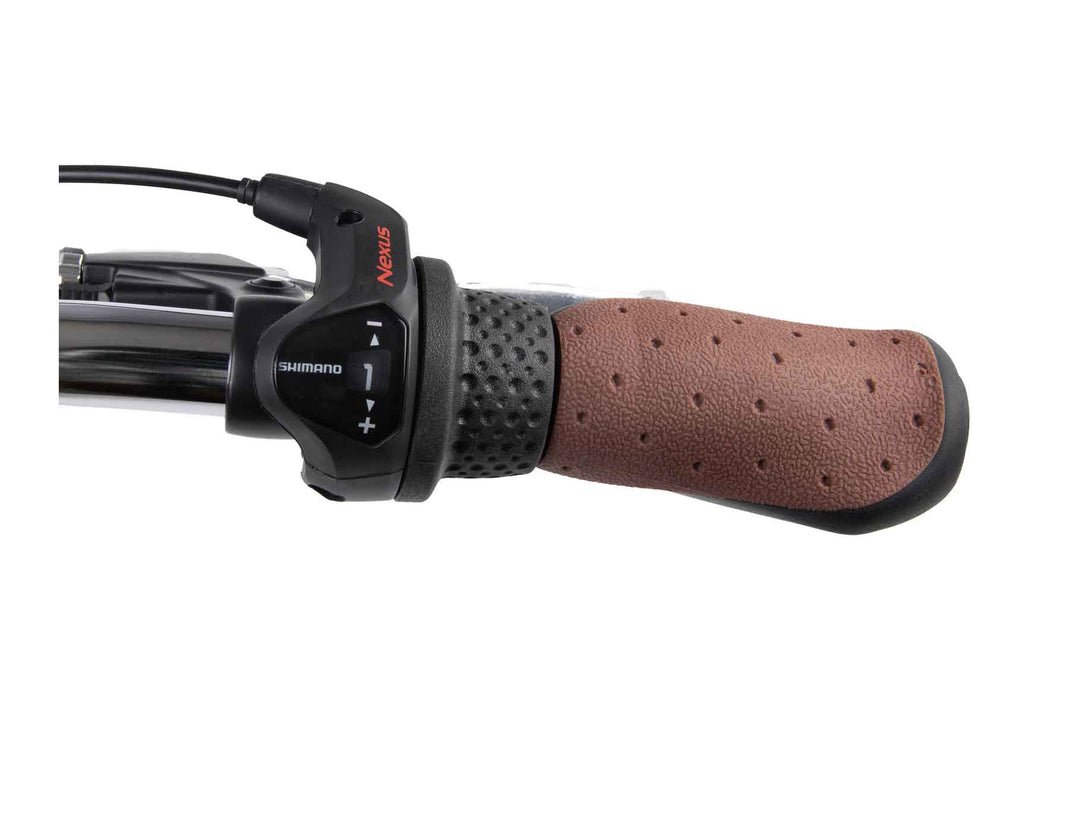

Shifters |

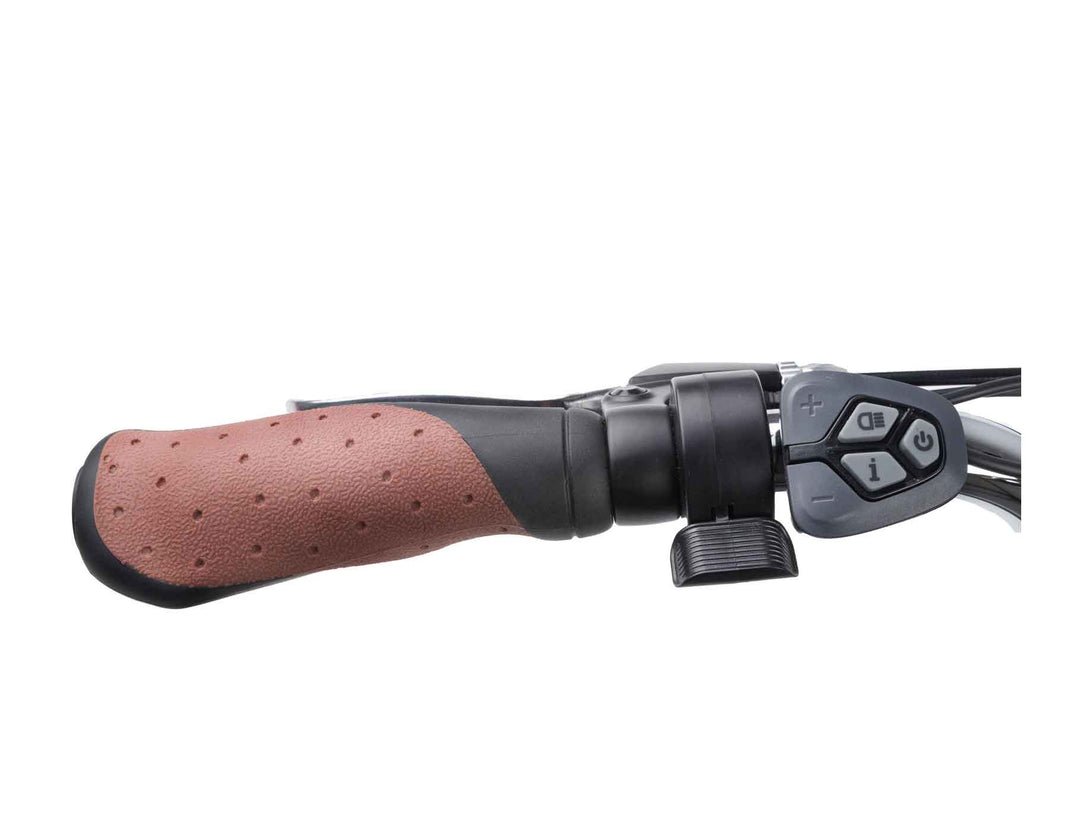

Shimano Grip Shifter, 3 Speeds |
Pedals |
Wellgo Comfort |

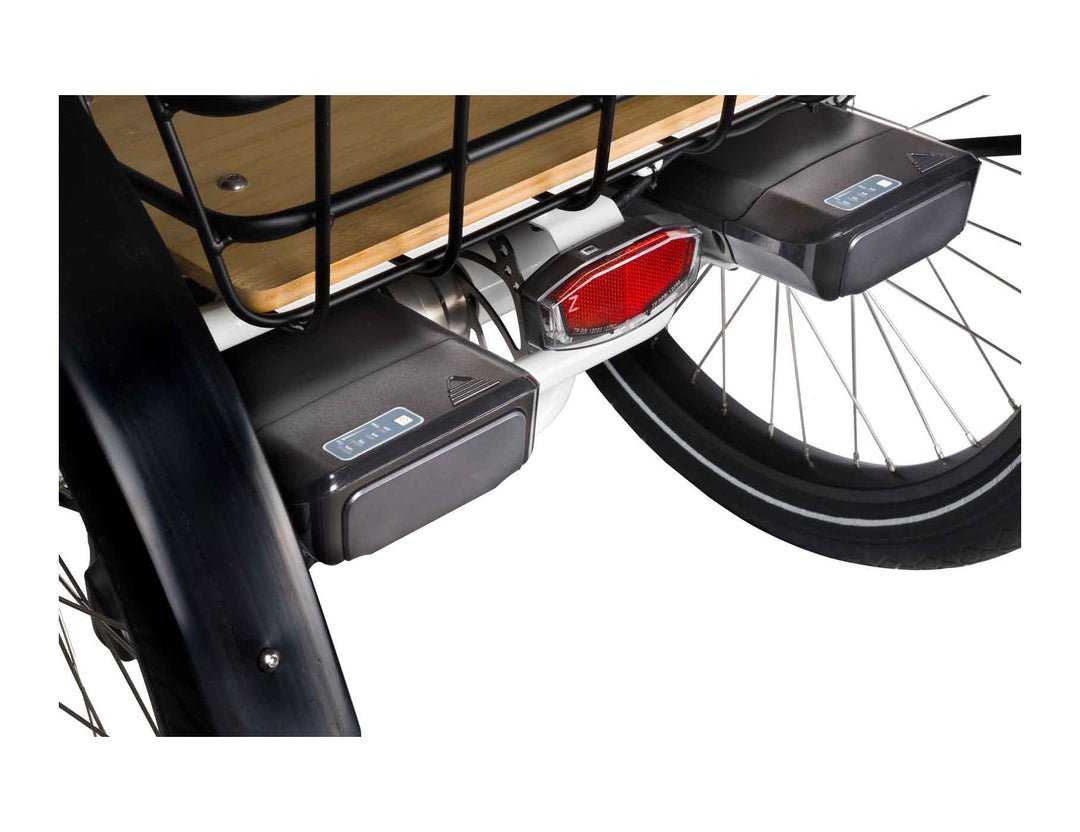

Lights |
Front and Rear Battery Integrated Lighting |

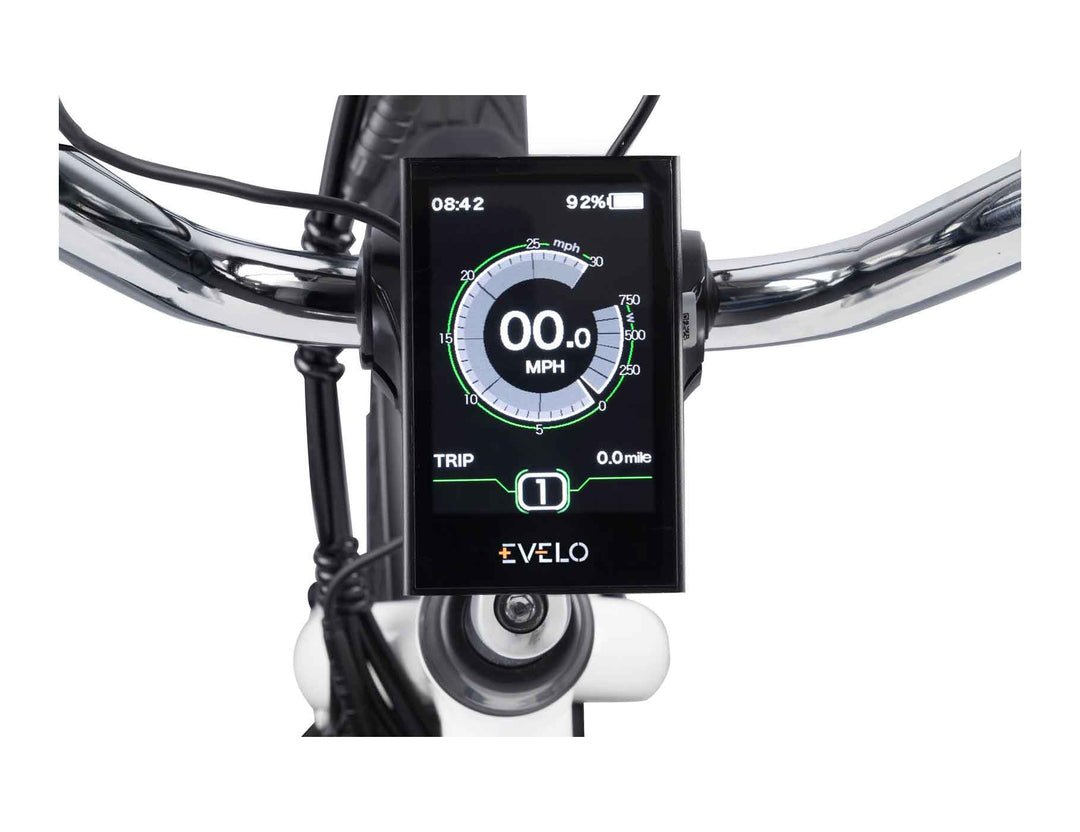

Speedometer |
Multi-Color 3.2” IPS Display with USB Charger (DPC-18) |
Fender |
All Weather Front and Rear Fenders |

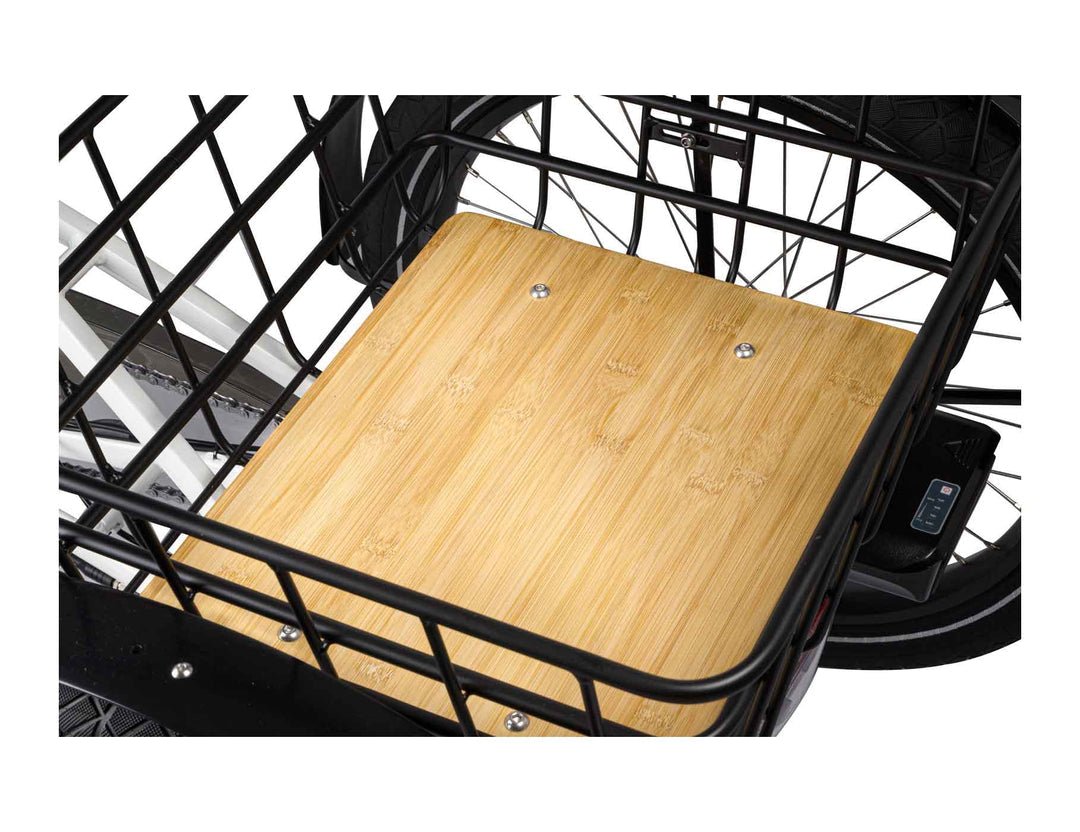

Rear Rack |
Wood Lined Cargo Basket Included |
Bicycle Weight (without battery) |
71 lbs. |
Battery Weight |
6 lbs. |
Maximum Rider Weight Accessories |
Recommended for riders up to 350 lbs. Larger riders can be accommodated – contact us for details. EVELO Water Bottle & Bottle Holder Included. |
Rider Position
Upright
An upright riding position puts the rider in a nearly vertical seating position for the most comfortable ride possible. You will experience little weight on hands and wrists, with the handlebars within easy reach. No stress or strain on the lower back, hands, or wrists.
Questions about the Compass?
Schedule a Free Consultation with an EVELO eBike expert. We're happy to offer 1 on 1 service to answer any of your questions about the EVELO Compass Tricycle, or any other eBike related topics.
FAQs
Is the Compass Tricycle a good choice for me?
If you’re looking for the best electric assist tricycle on the market, look no further. The Compass has the most powerful motor, extended range battery, a step-through frame, comfortable upright riding position, two wheel drive, a 3 speed transmission, and a large basket. It’s got it all.
Does the Compass have enough power for my terrain?
Yes. While you may notice this model is rated at 500W vs. the 750W rating of other models, keep in mind that this specific model is geared very low, so in first gear the Compass can tackle the steepest hill with the largest riders and heaviest payloads. It’s designed with torque and power in mind, and not for top speed.
Will I fit properly on the Compass?
The Compass trike can be adjusted to fit a very large range of riders thanks to its unique frame and seatpost design. Take a closer look at our sizing chart and specifications on the product page. A great way to compare this to your existing bike is to measure your current saddle height straight down to the ground - this gives you a real number to compare to the specs on our website. If this measurement is over 30” - you will fit comfortably on the Compass tricycle.
