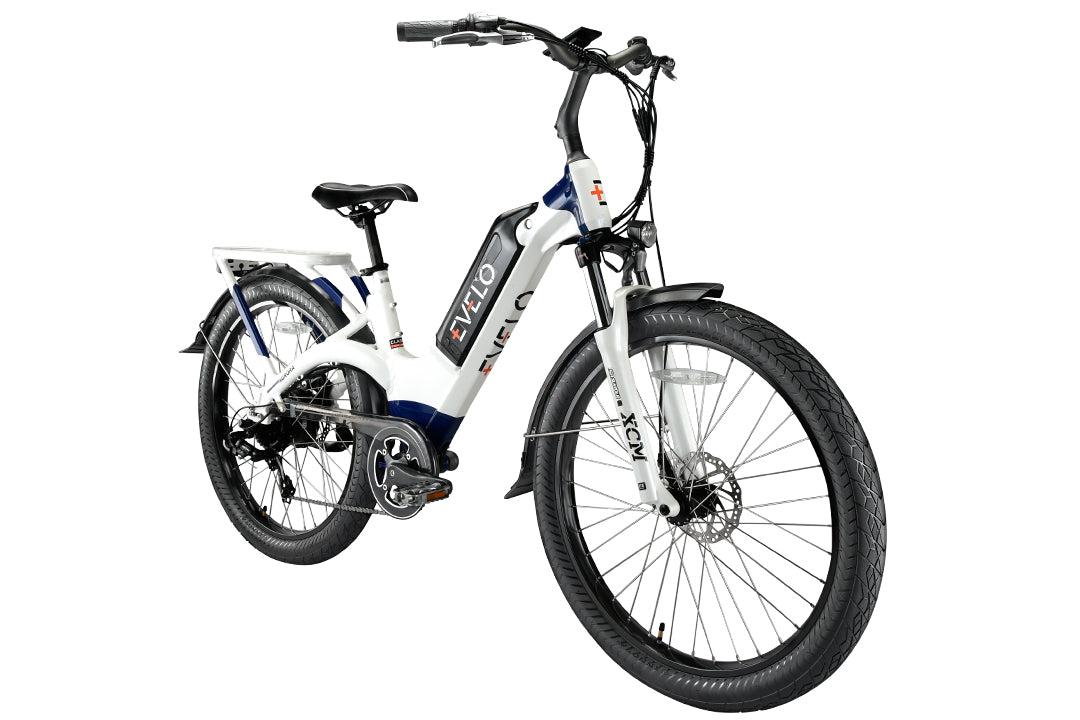

Aurora Hub
Up To 45
MILES RANGE
750w
REAR HUB DRIVE MOTOR
4-YEAR
WARRANTY
Aurora Hub Drive Features

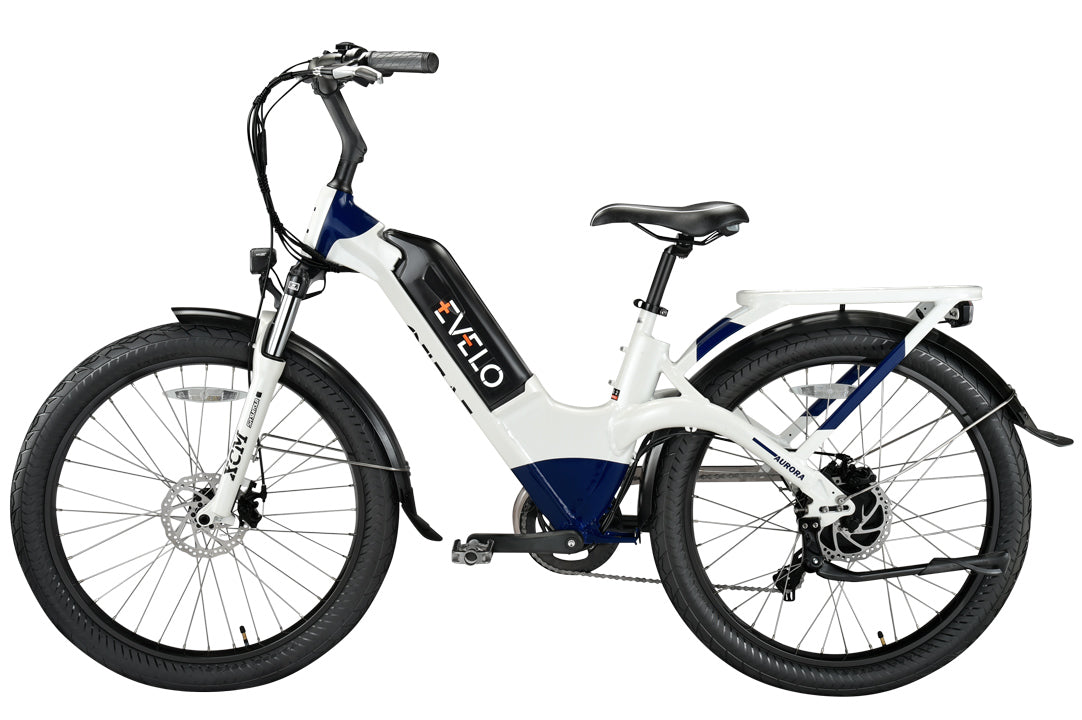

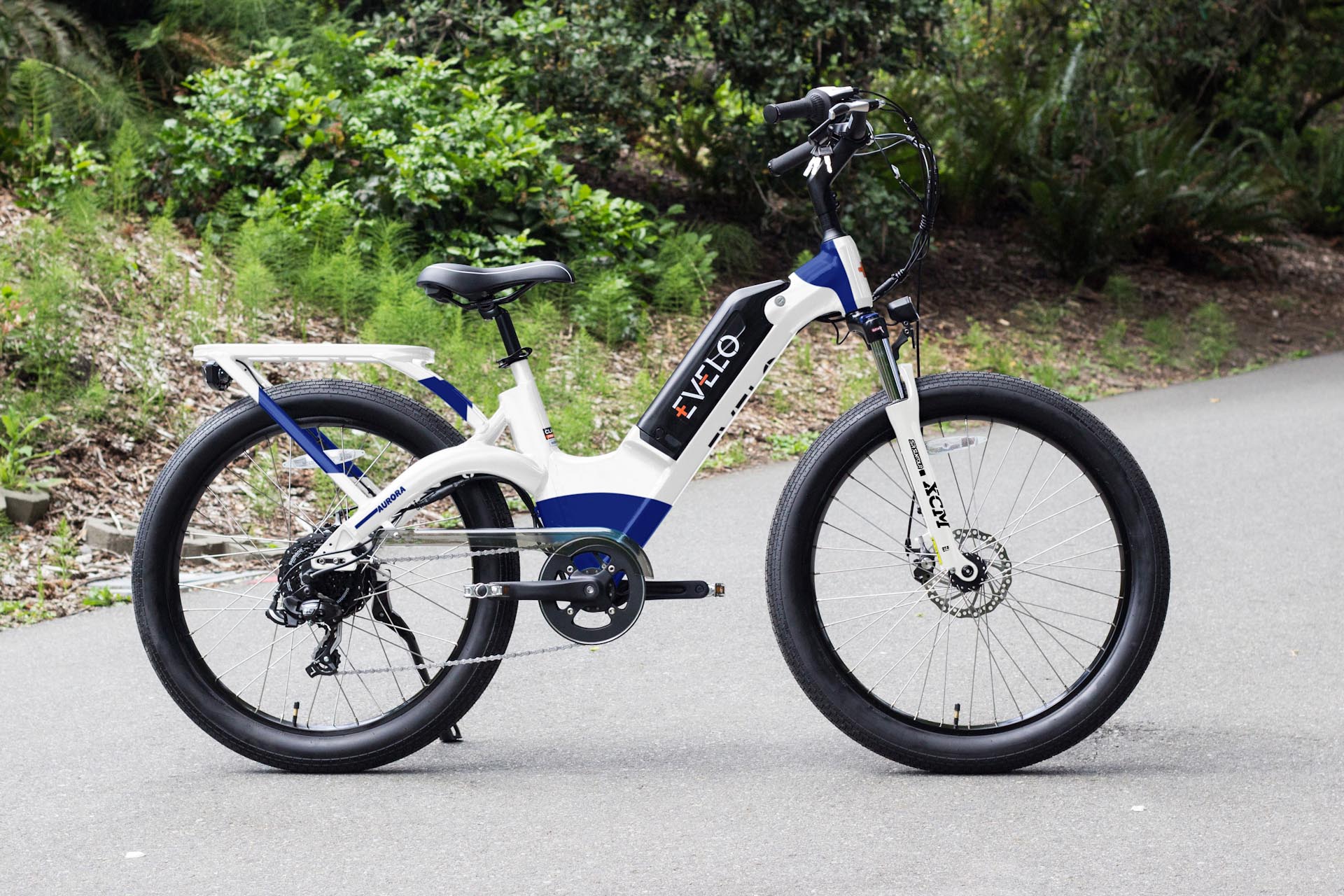

Easy Access Step-through Frame Design
Removing the top tube from a high power electric bicycle is no easy task, but EVELO engineers have designed the Aurora to offer the lowest point of entry possible, making it easy to get on and off the bike for both men and women. Looking to load up for your next adventure? The step through frame also benefits touring cyclists, making it easy to get on and off your bicycle with a full load of gear on the rear rack. This is the future of eBikes.

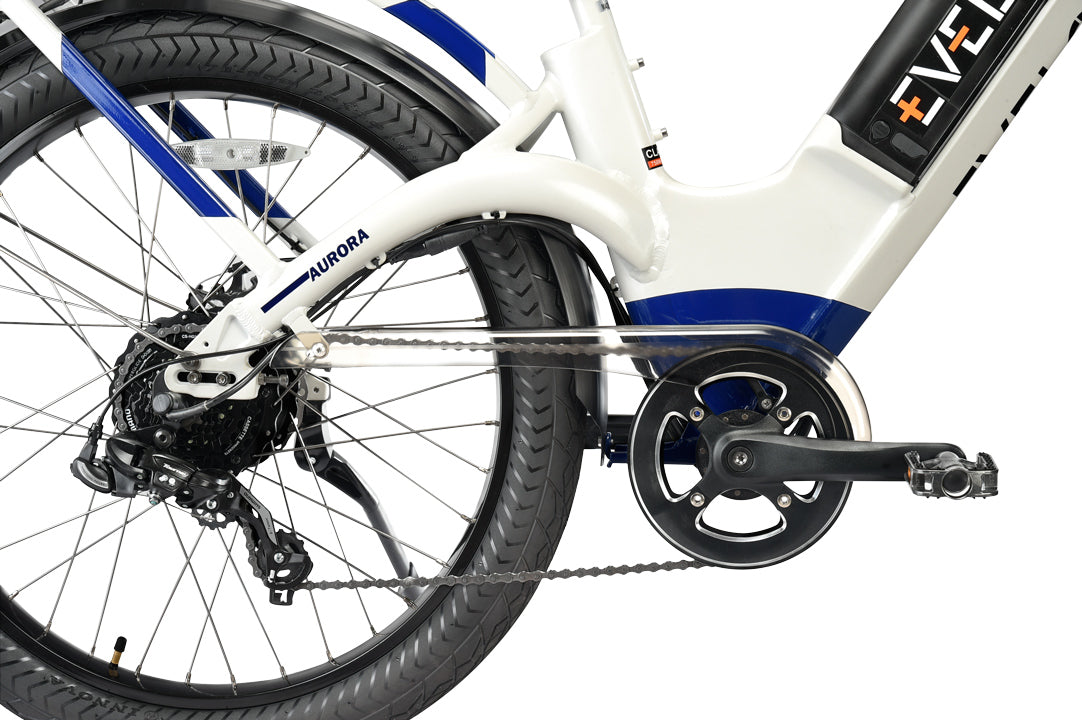

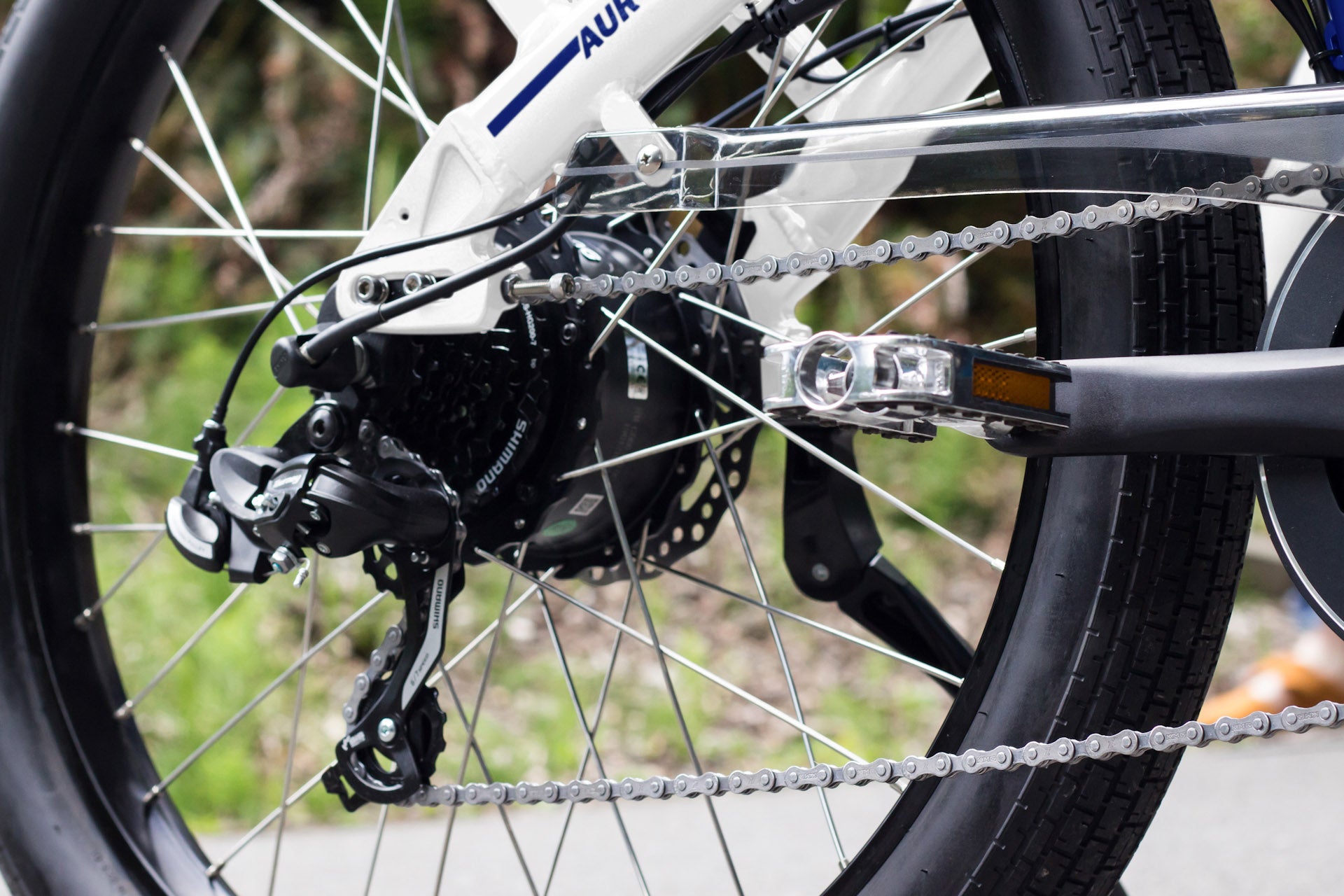

Time Tested Shimano Drivetrain Components

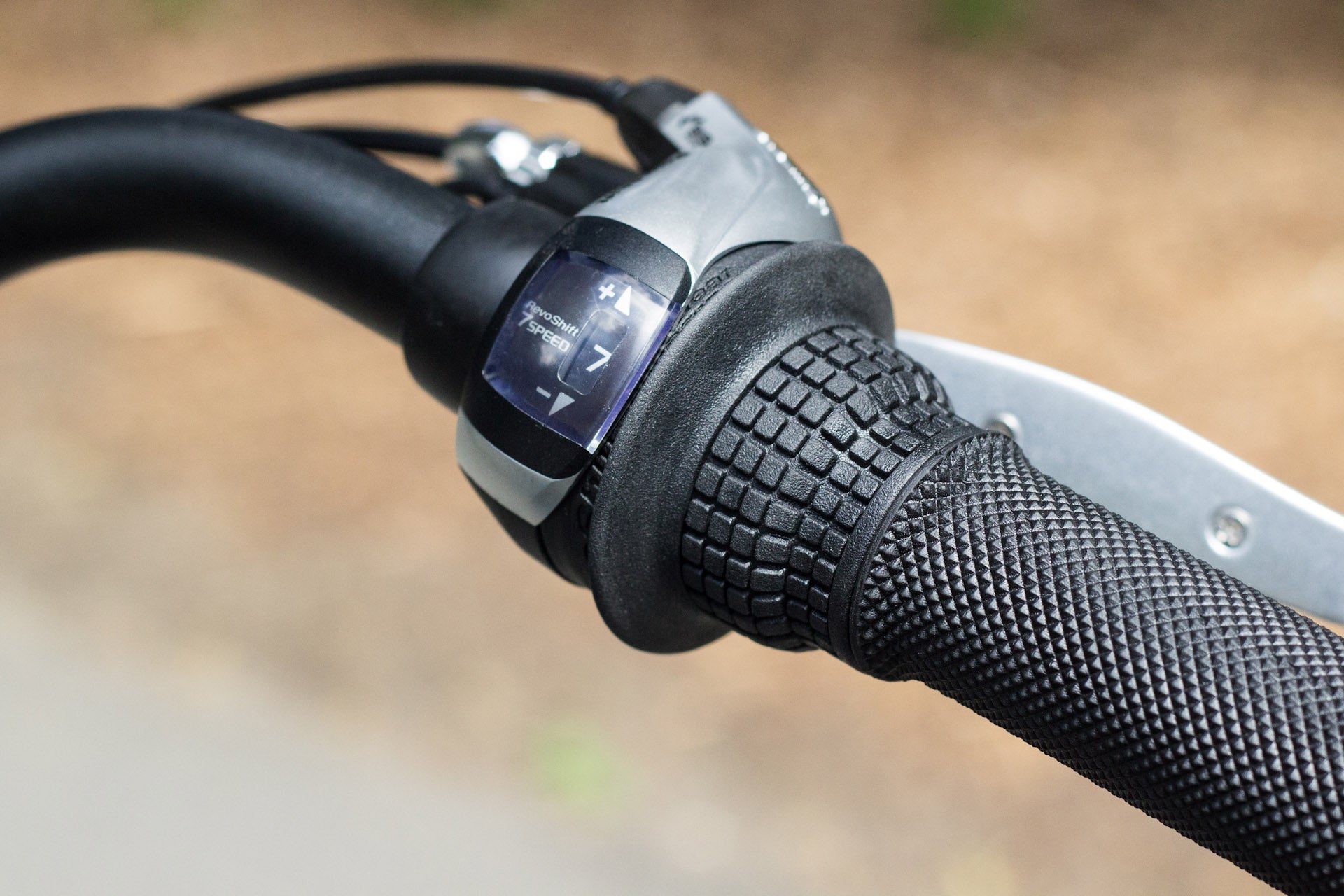

Shimano components have proven themselves to be the most reliable drivetrain components time and time again with nearly a century of manufacturing experience and expertise. The wide-range 7 speed system featured on the Aries Hub will give you the gear range you need to tackle the steepest hills, and achieve top speeds of over 25mph in off road mode. The grip shifter on the right hand side of the handlebar is comfortable, easy to use, and provides you with accurate shifting, every time.
More Range, More Fun

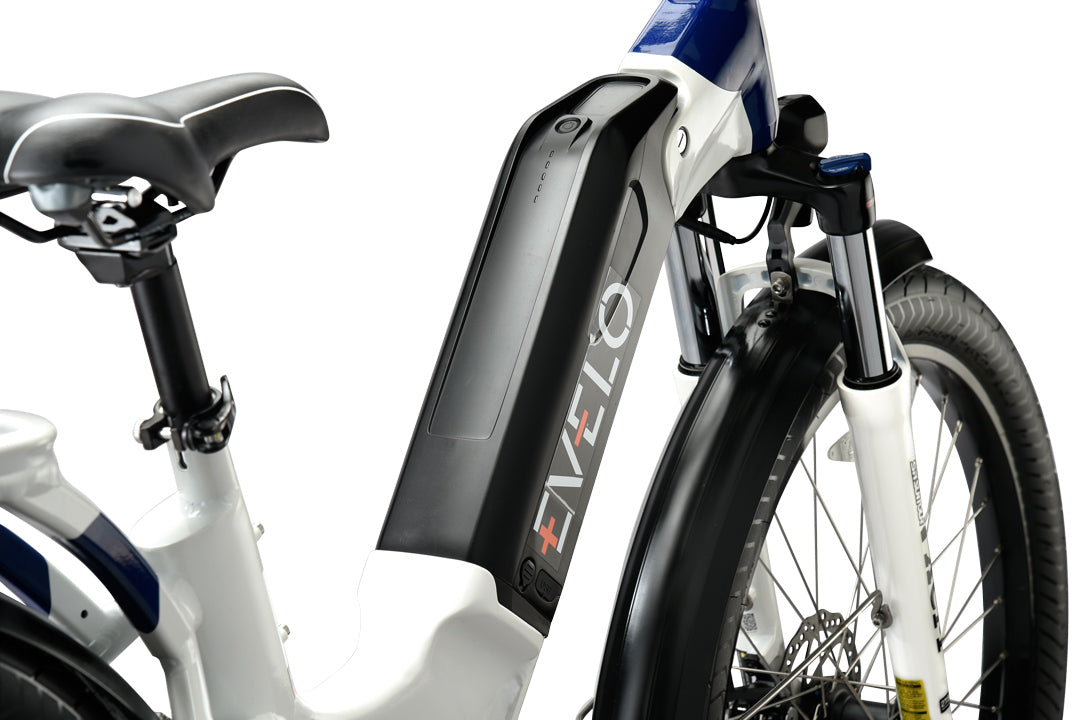

Go the extra mile with EVELO’s top-tier Li-ion cell technology. Our large semi-integrated frame battery offers extended range, and is easily removed for charging on or off your bicycle. With short charge times and up to 45 miles of range for your average rider, you can ride and explore more, and spend less time worrying about when to head back home.
Easy Assembly
It arrives almost fully assembled (95%), so you can be riding in no time!
EASY ASSEMBLY
Product Specifications
Sizing
| SIZING |
|
Recommended Rider Heights 5'2" - 6'2" Seat to Ground (Lowest / Highest) 34.75" / 40.5" |
|
Distance from the top of the saddle to the pedal, with the pedal in the most downward position. Standover height is the distance from the ground to the middle of the top tube with the traditional diamond frame, and from the ground to the mid-length of the middle of the tube with the step-through frame design. We define reach as a distance from the middle of the saddle to the handlebar grips. The reach measures how far you need to lean to "reach" the handlebar. |
Bike Components
|

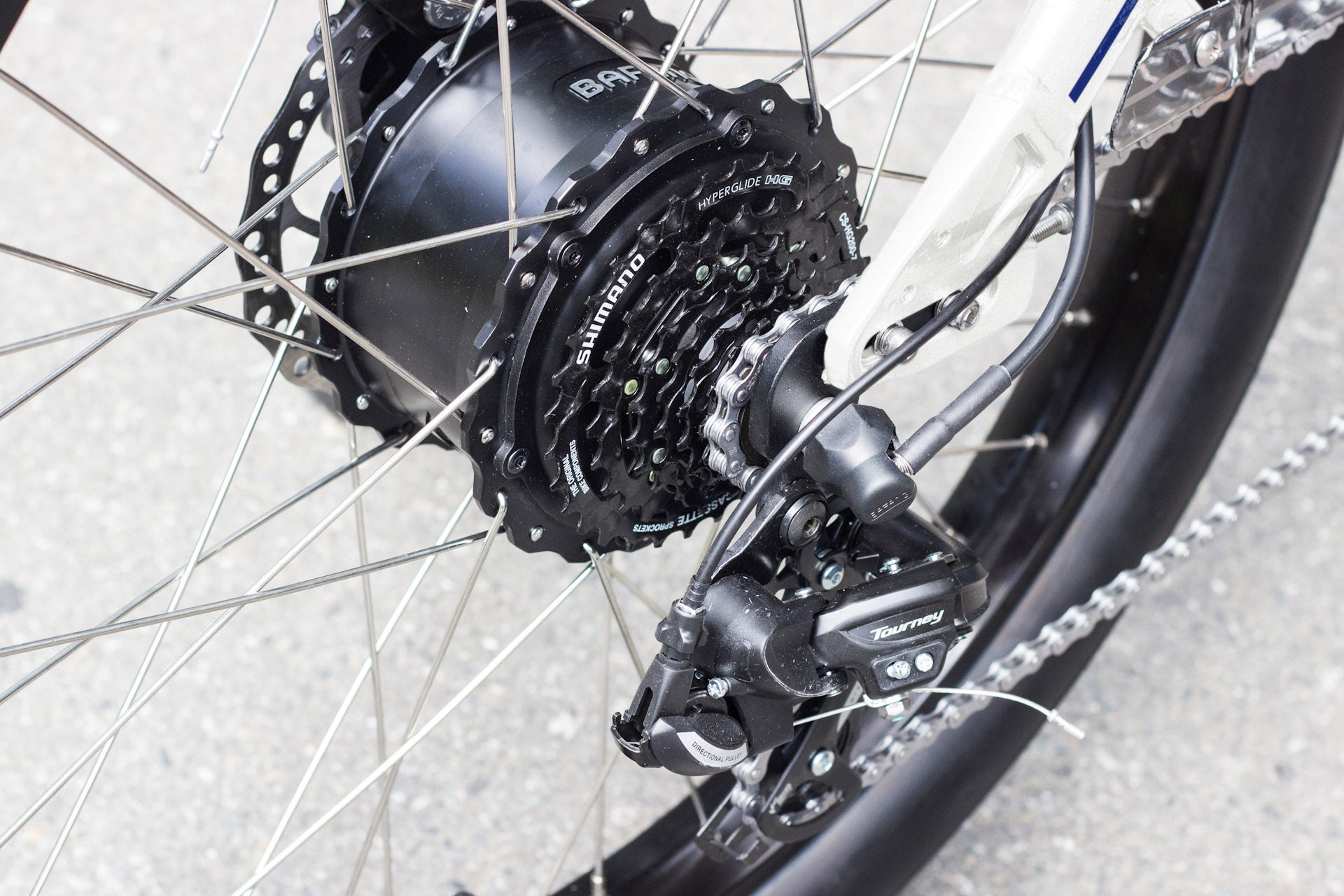

Motor |

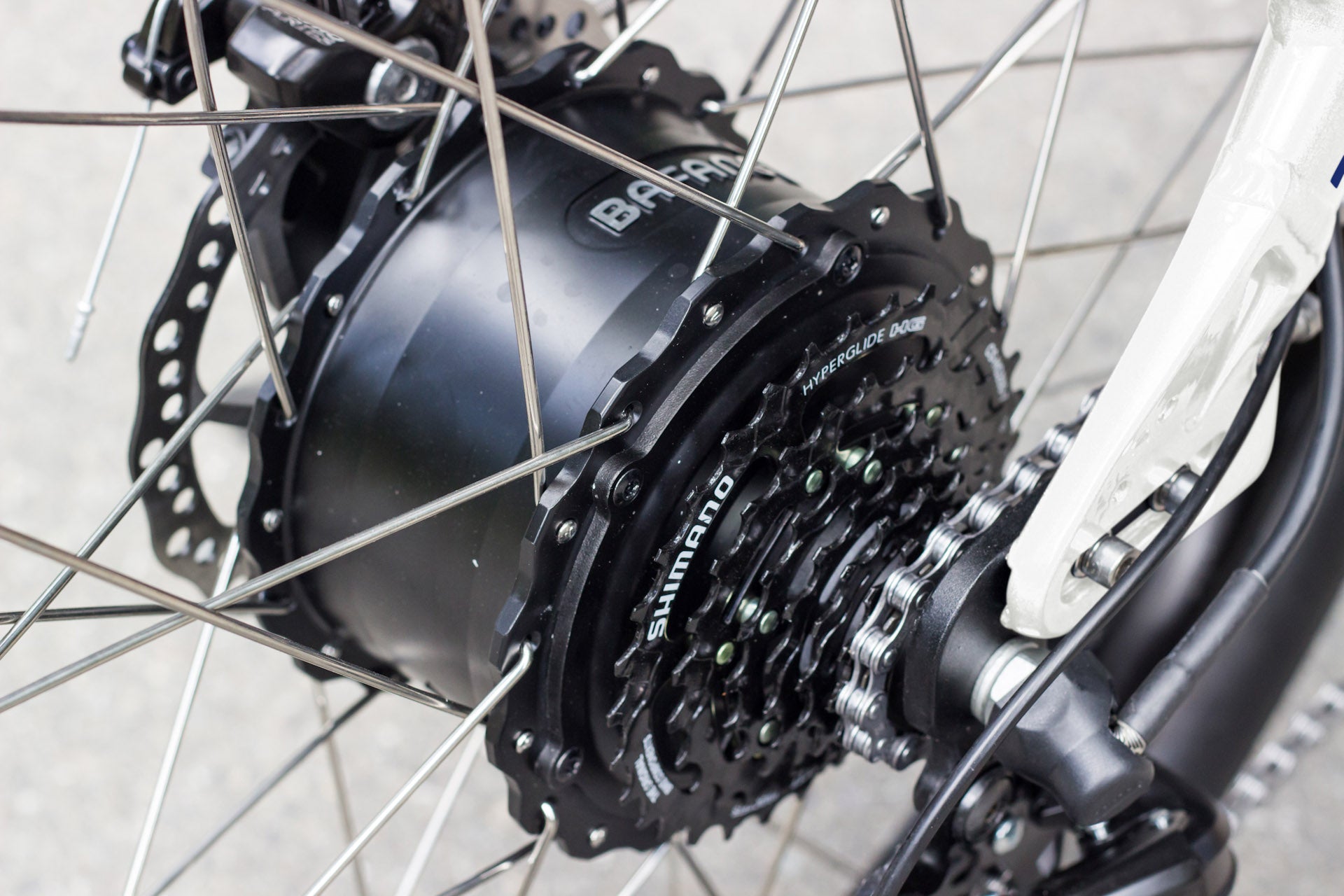

Bafang 750W Continuous, 1000W Peak Rear Hub Motor, 85 N.m. Torque |
|
Battery |
Lithium-Ion 48V11.6Ah with Advanced Battery Management Software |
|
Charger |
48V Smart Charger |
|
Maximum Motor-Assisted Speed |
20 Miles per Hour (Can be Increased to 25 mph Maximum in Off-road Mode) |
|
Range |
Up to 45 Miles on Pedal-Assist or 25 Miles on Electric-Only |
|
Electric Assist |
Multiple Levels, Plus Electric-Only (via Throttle) |
|
Frame |
6061 High-Strength Aluminum Alloy |
|
Fork |

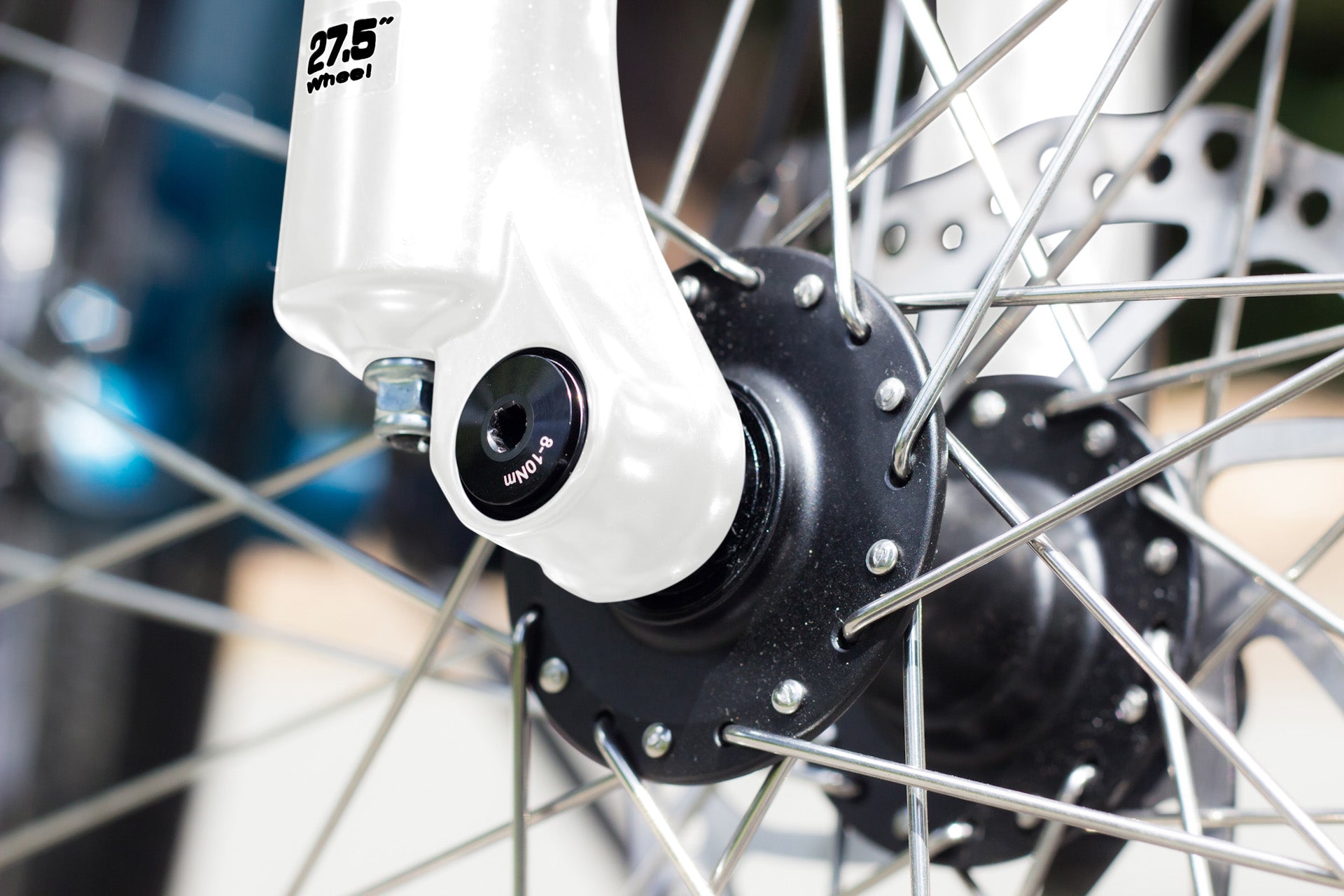

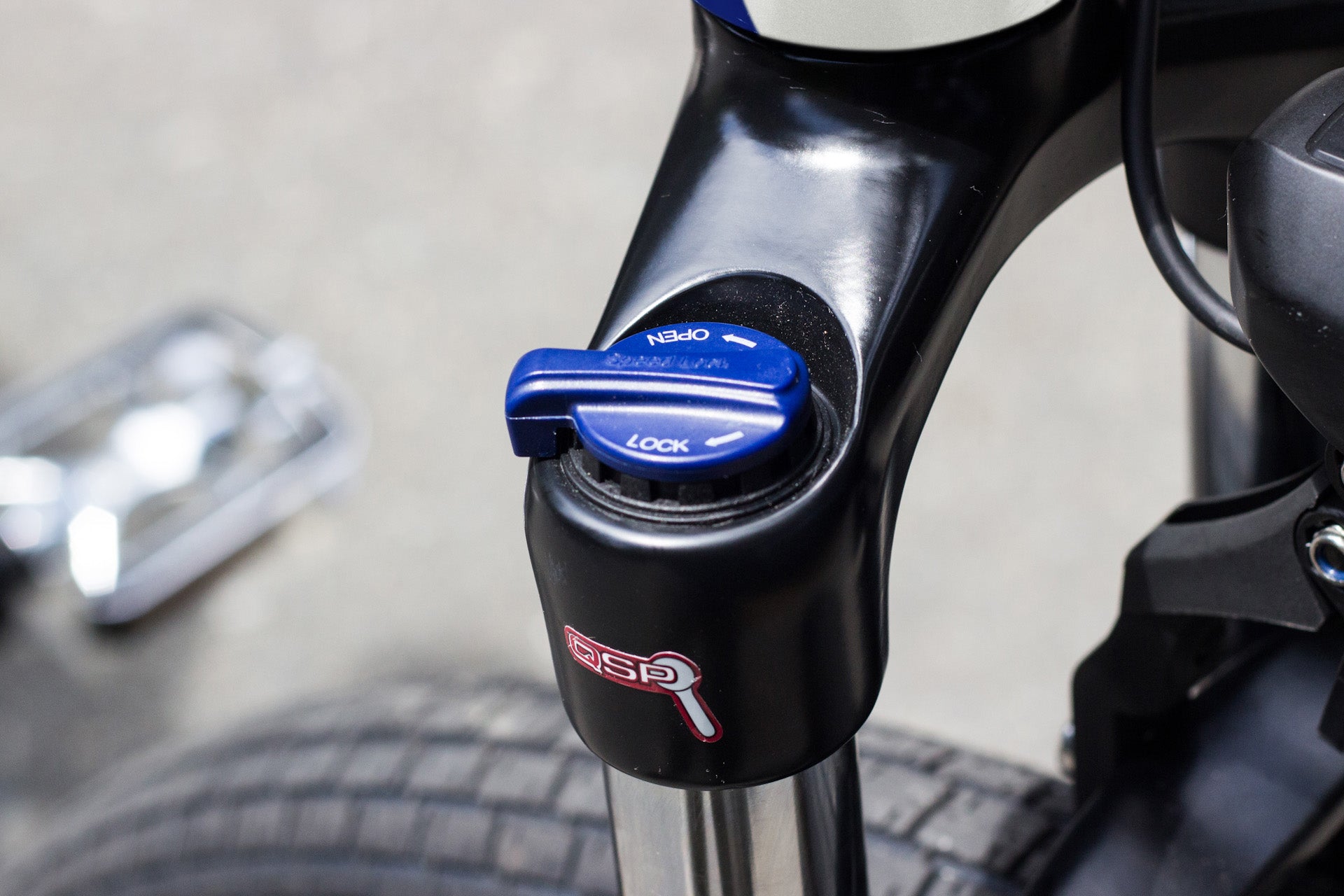

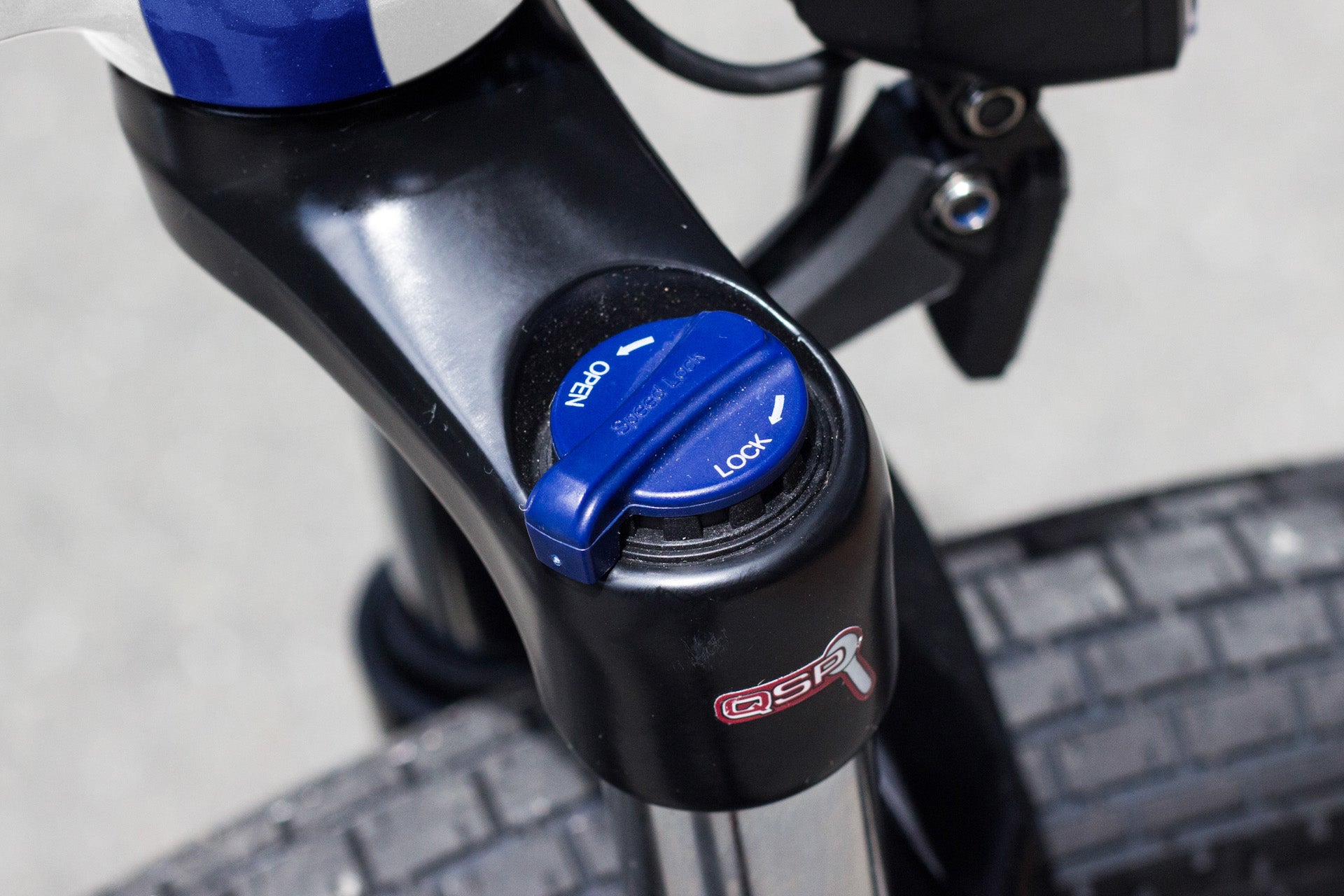

Suntour XCM32 Boost Technology 15mm Thru Axle, with fender eyelets |
|
Wheel |
36H 45mm wide Double Wall Alloy Rims with 13g Spokes |
|
Tire |
Puncture Resistant Innova 26" x 2.8″ |
|
Brakes |

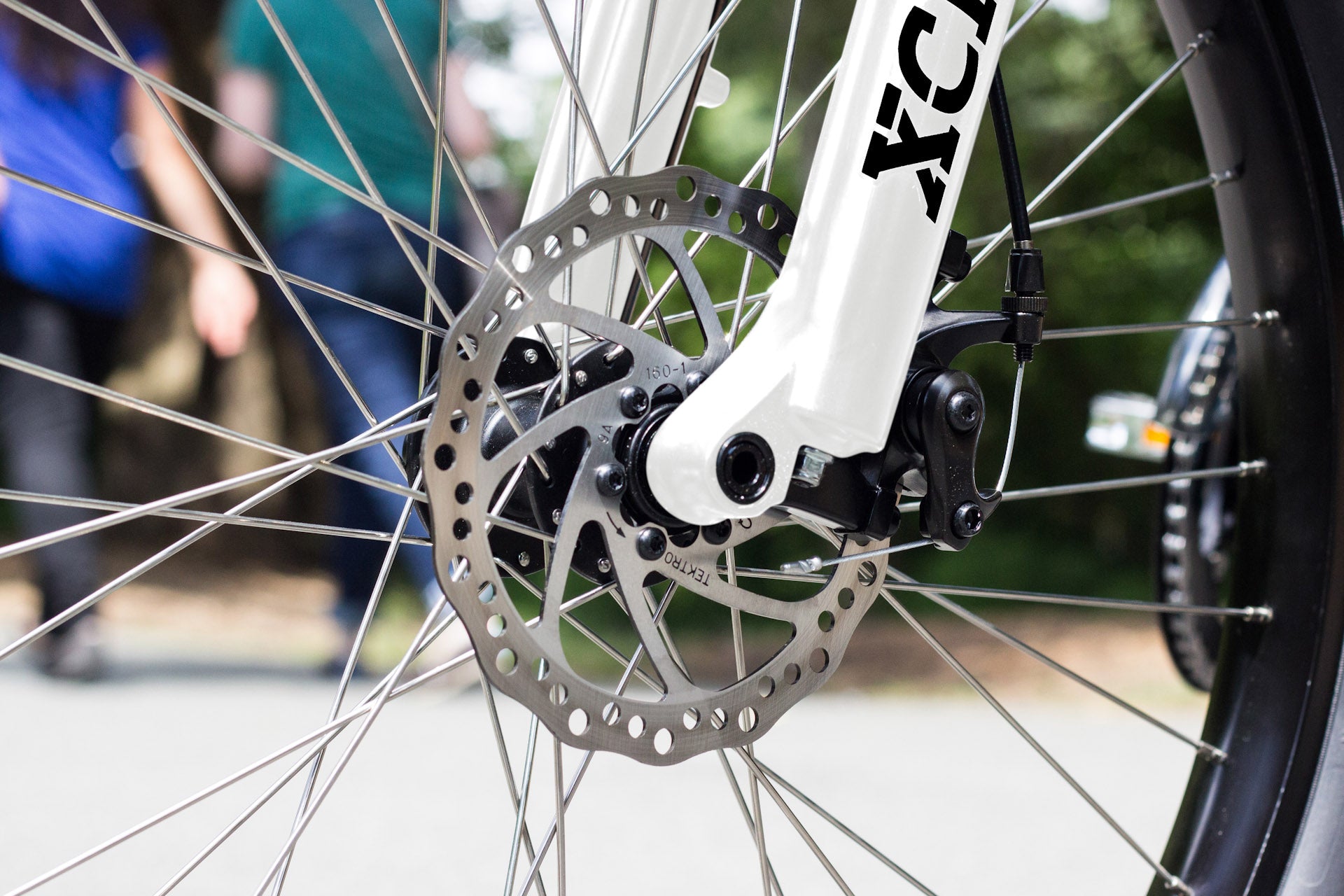

Tektro MD-M300 Disc Brakes with 160mm rotor and cutoff switch |
|
Seat |

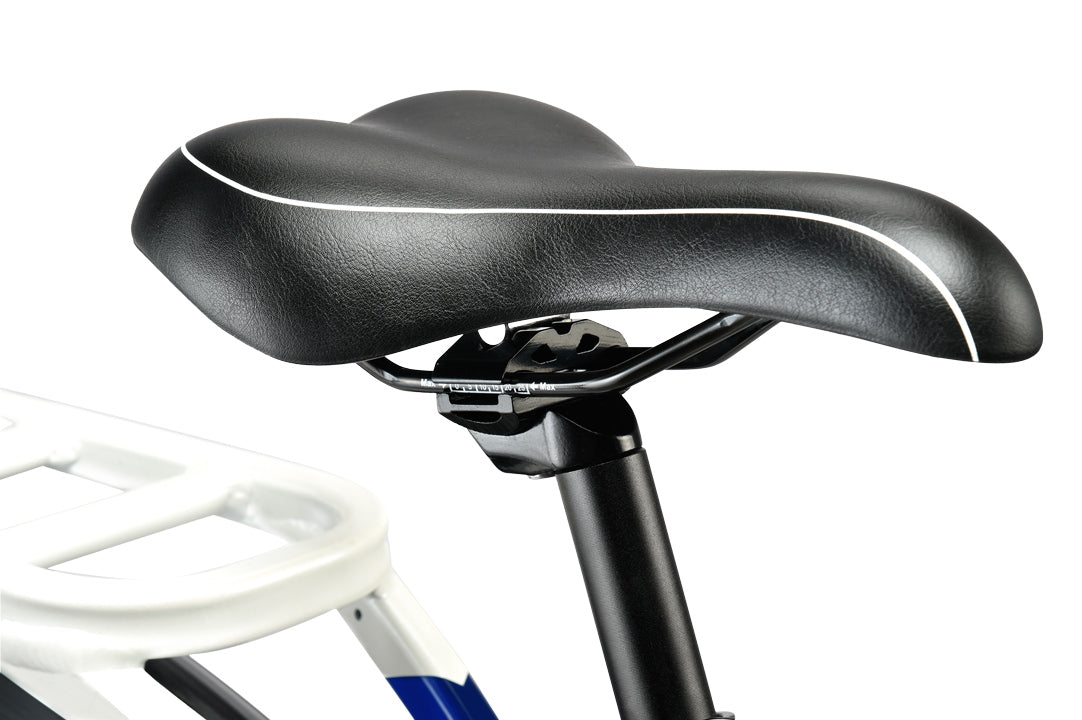

Velo Breeze Comfort Saddle with Memory Foam |
| Fully Integrated Spanninga Kendo Front, Lineo Rear | |
|
Stem |
EVELO Stargazer, 110mm |
|
Speeds |
Shimano 7-Speed Transmission |
|

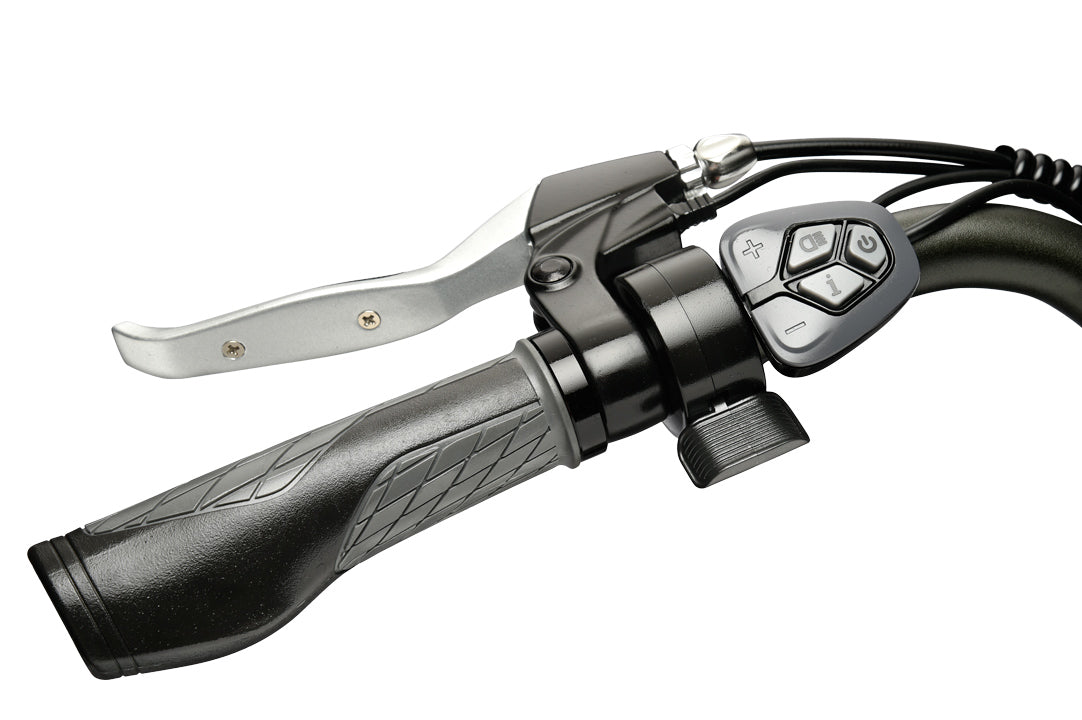

Shifters |

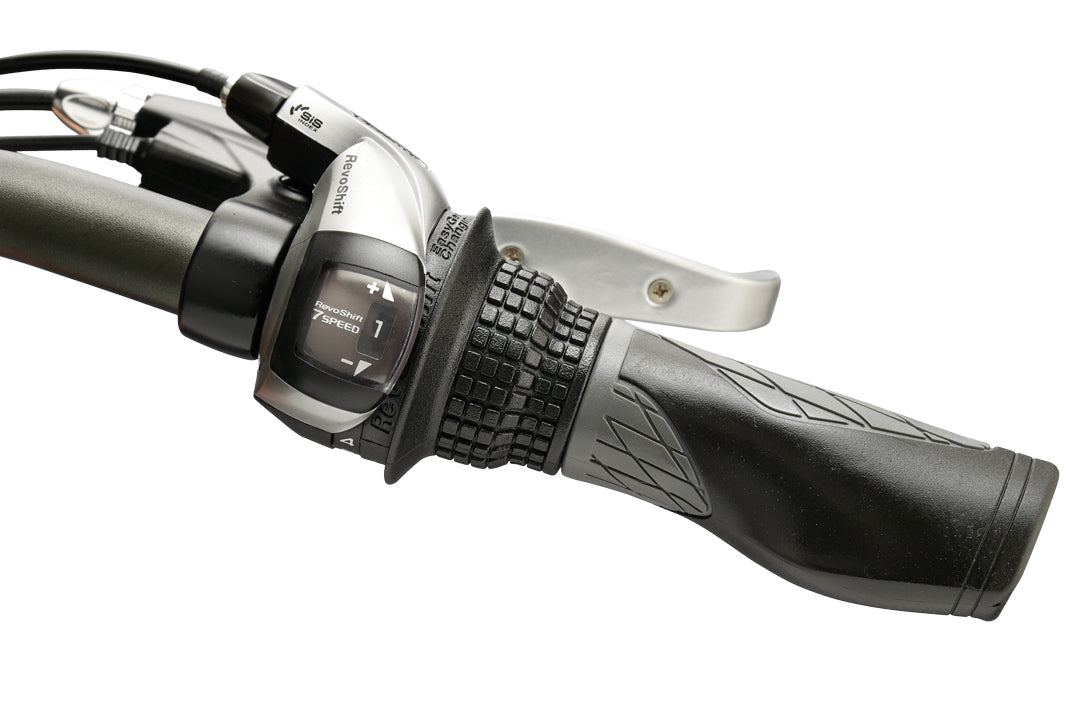

Shimano Revo Shifter, 7 Speed |
|
Pedals |

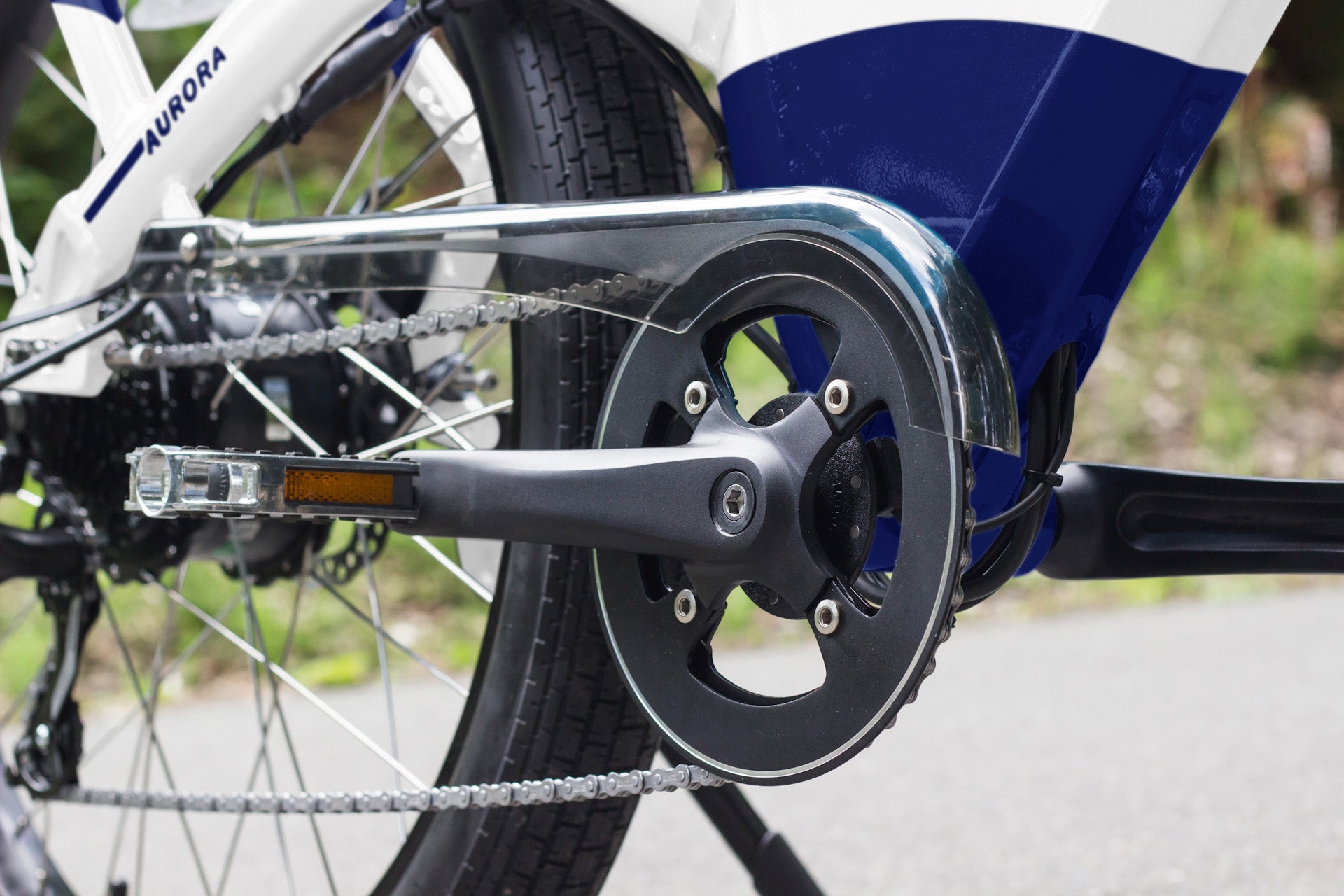

Wellgo LU-C33 |
|

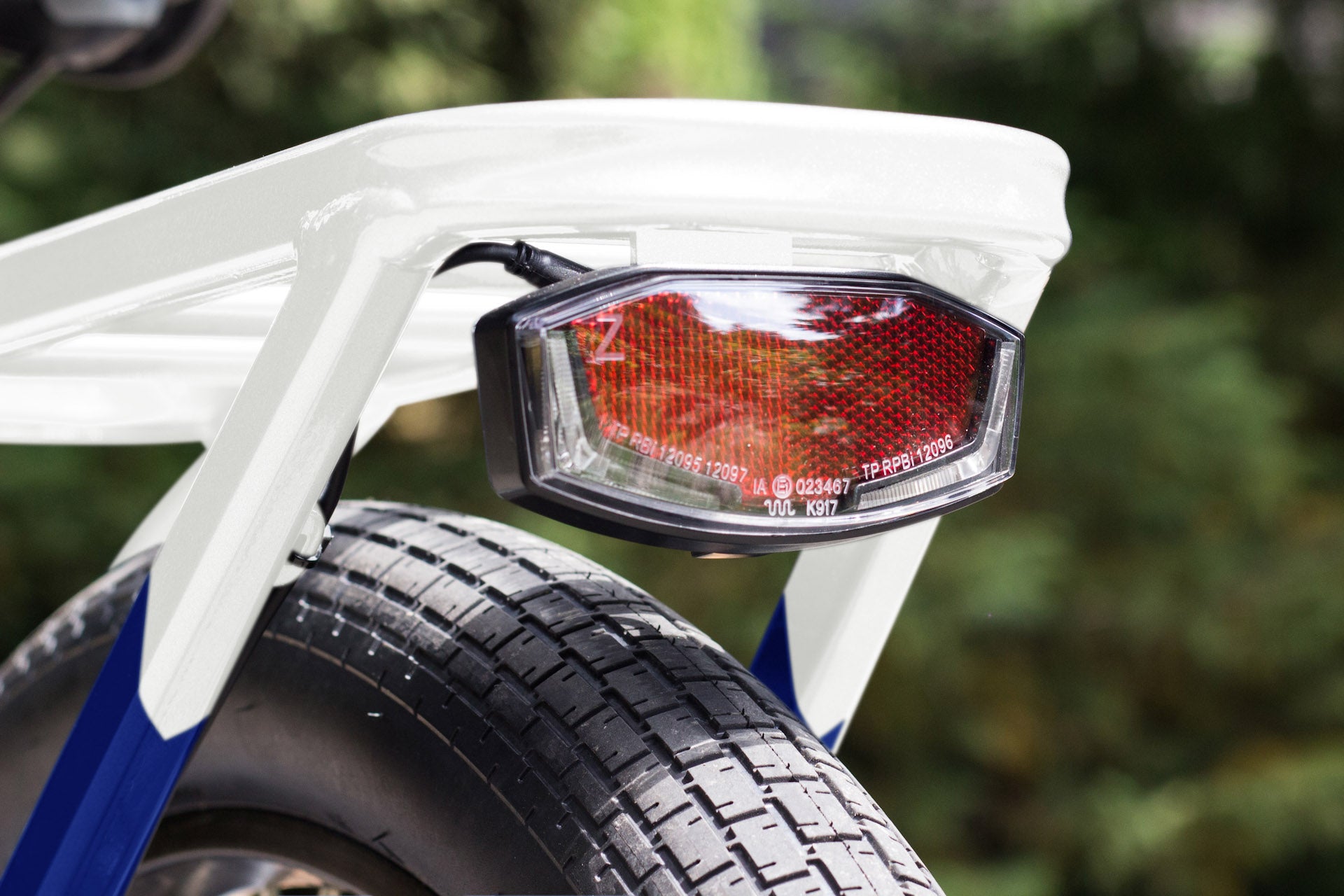

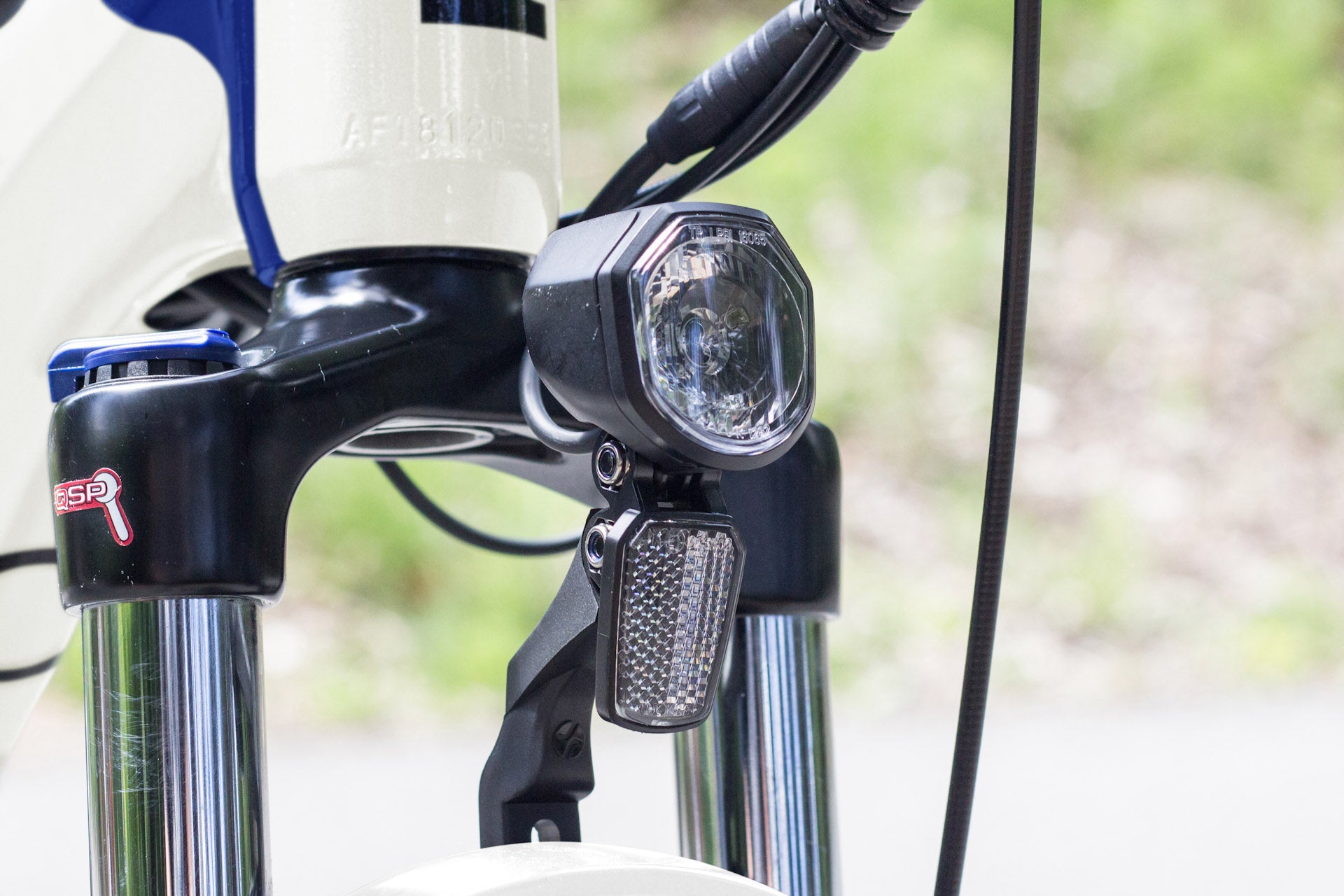

Lights |
Fully Integrated Spanninga Kendo Front, Lineo Rear |
|
Display |

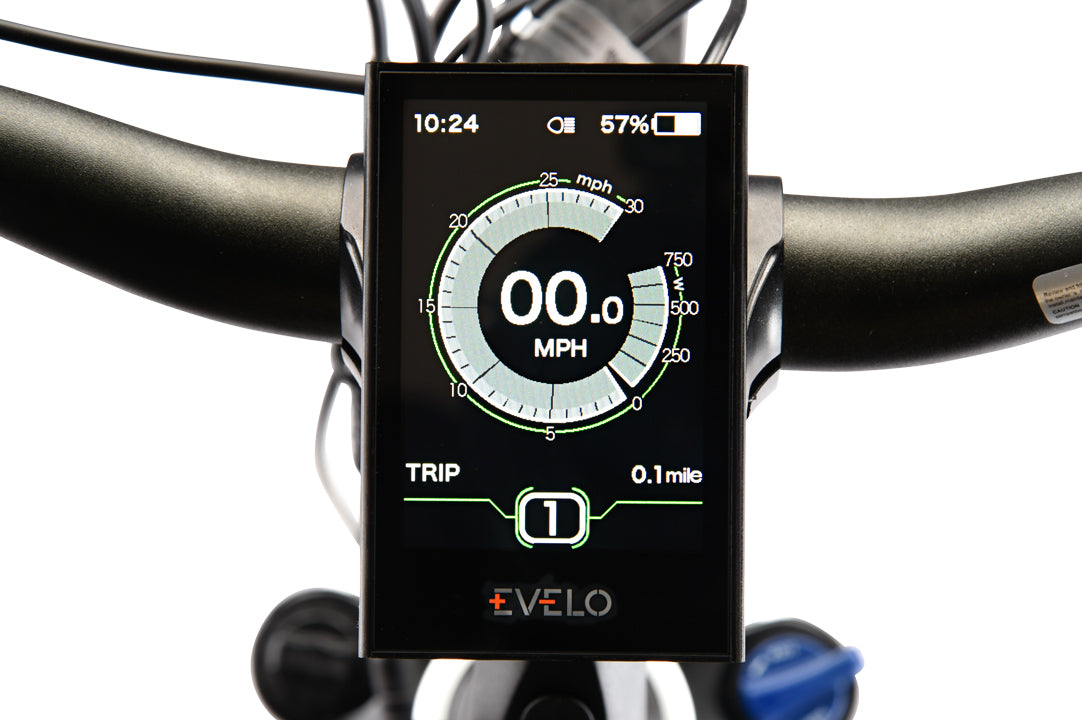

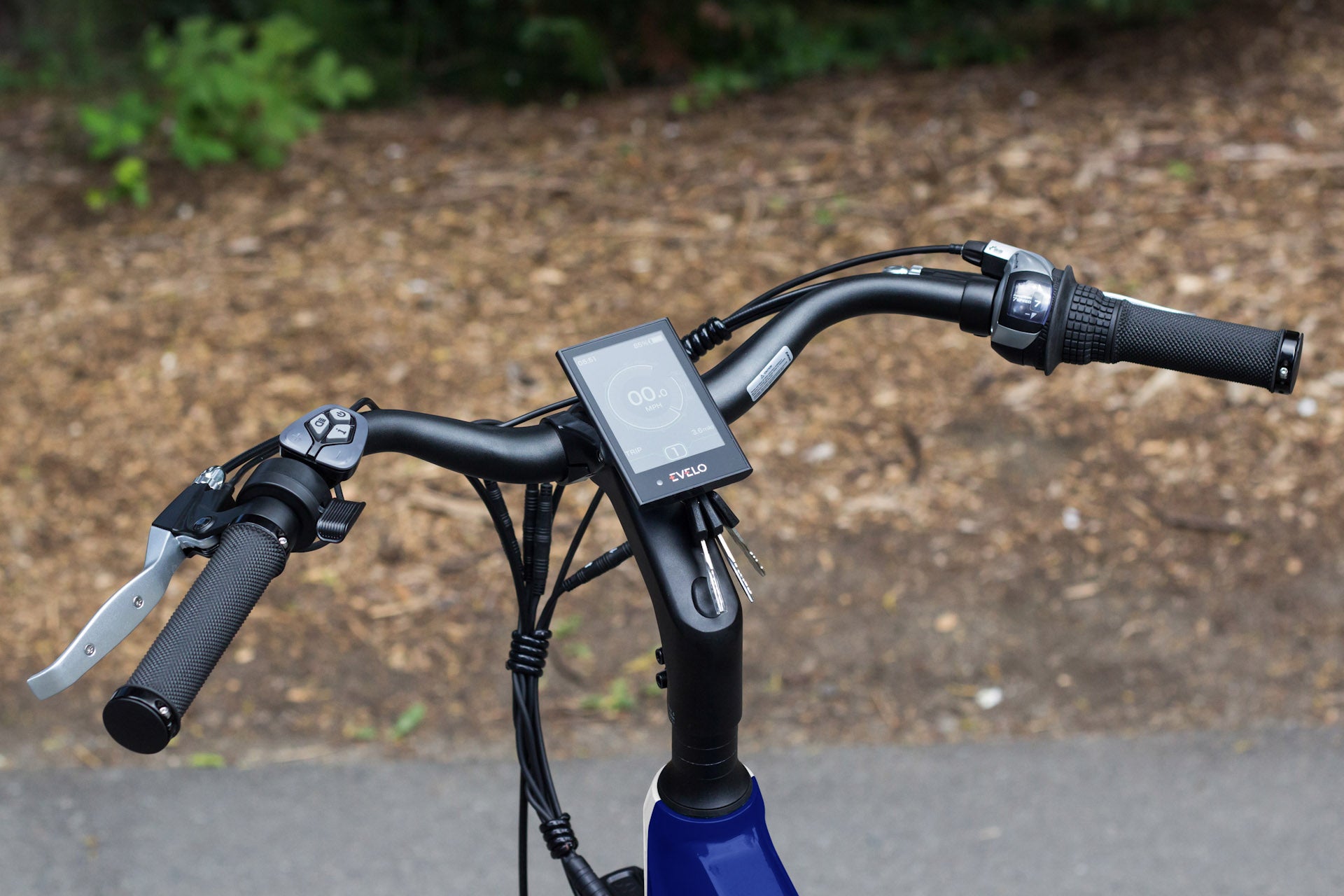

Multi-Color 3.2” IPS Display with USB Charger (DPC-18) |
|
Fender |
All Weather Front and Rear Fenders |
|

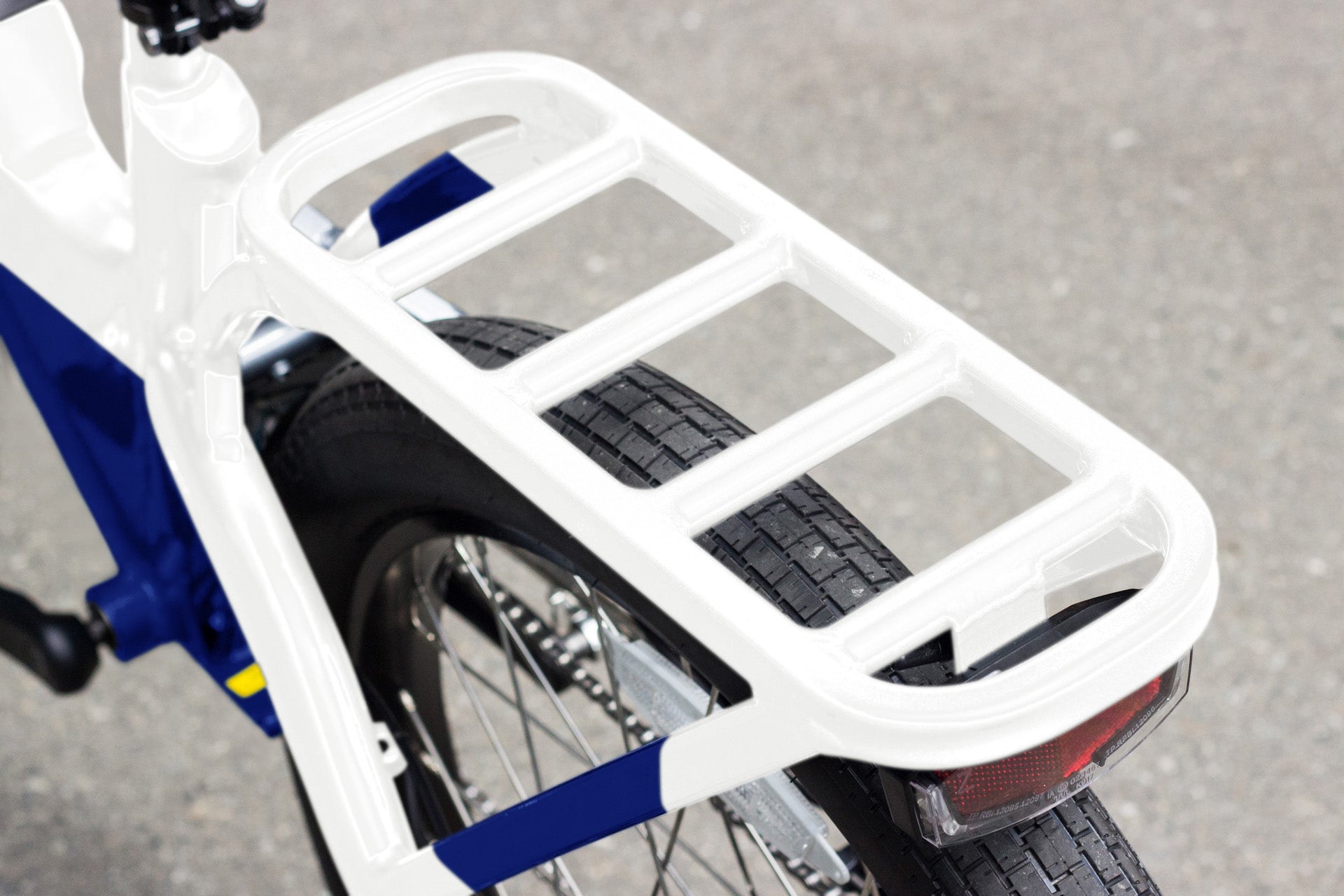

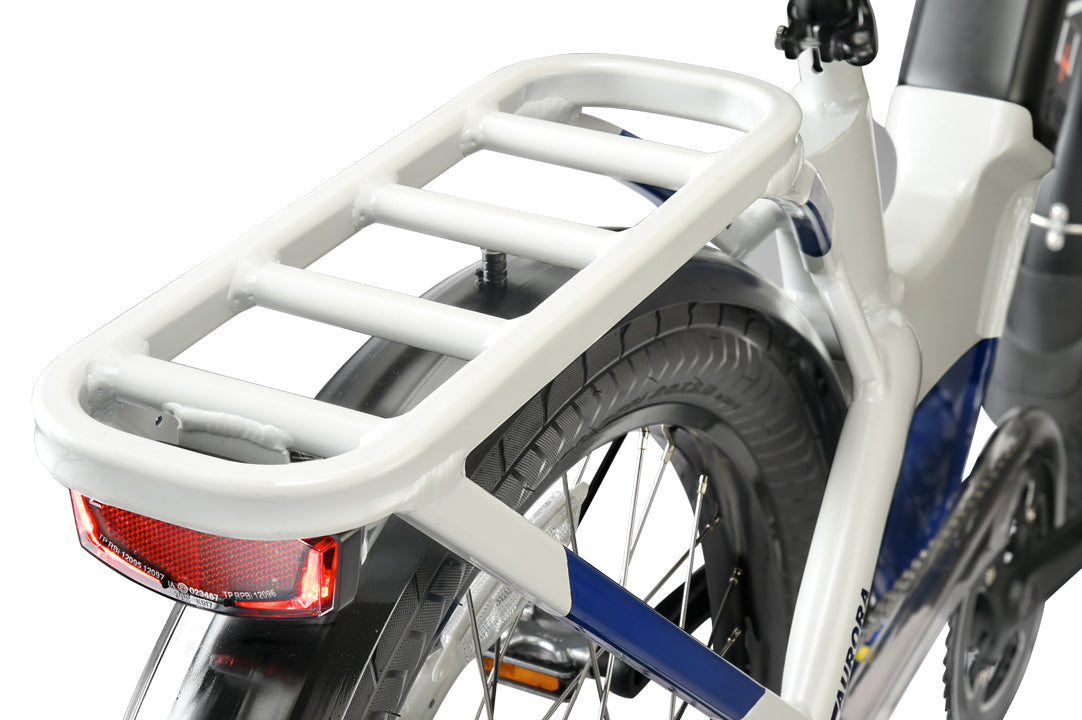

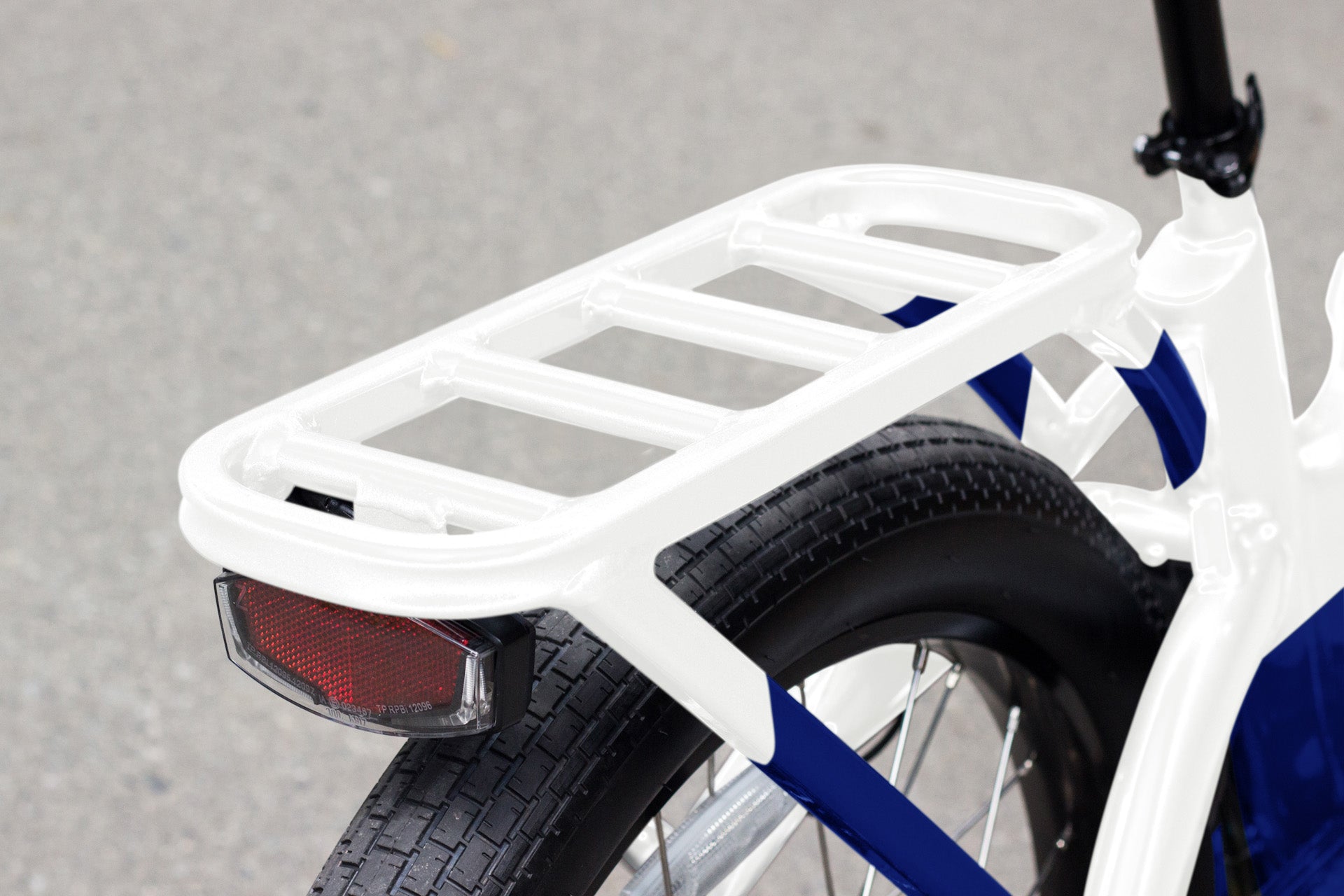

Rear Rack |

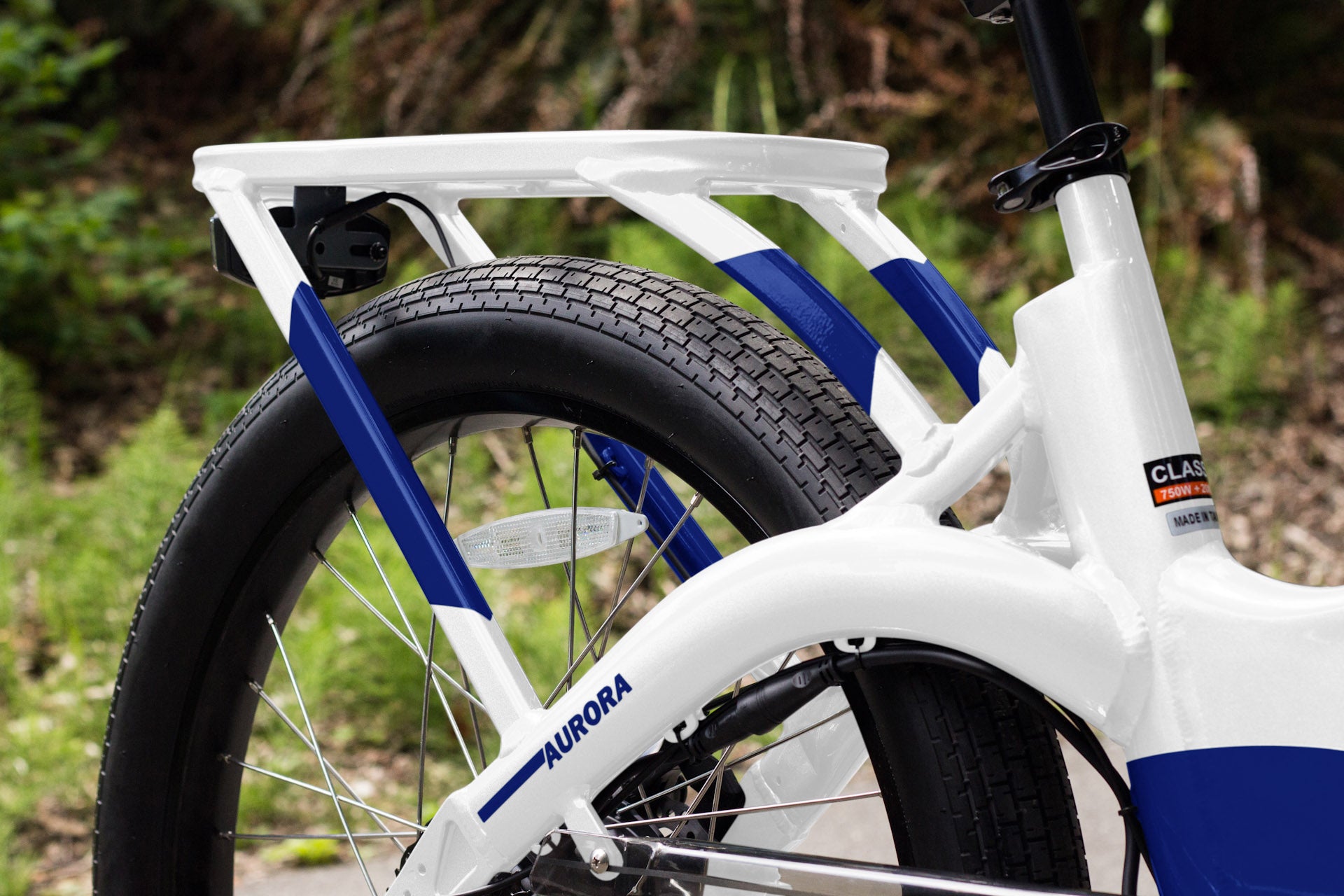

Cargo Rack, 45 lb. Weight Capacity |
|
Bicycle Weight (without battery) |
60.83 Lbs. |
|
Battery Weight |
7 lbs |
|
Maximum Rider Weight |
Recommended for riders up to 350 lbs. Larger riders can be accommodated – contact us for details. |
Rider Position
Upright
An upright riding position puts the rider in a nearly vertical seating position for the most comfortable ride possible. You will experience little weight on hands and wrists, with the handlebars within easy reach. No stress or strain on the lower back, hands, or wrists.
FAQs
Is the Aurora Hub a good choice for me?
The Aurora Hub is a simplified version of our Limited model, with an easy access step-through, and comfortable riding position. The Hub Motor has plenty of power for most riders, and features a cadence sensor for the easiest riding possible if you prefer not too hard. If you plan to climb Mt. Everest on the weekends, you may also want to consider one of our Mid Drive models.
Does the Aurora Hub have enough power for my terrain?
Hub Drive eBikes are slightly less efficient than their Mid Drive motor cousins, but are also significantly less expensive. The Aurora Hub can handle larger riders with ease, and can comfortably climb 8% grade with no pedaling whatsoever. The powerful Hub motor offers ample torque for most riding conditions, and the reliable Shimano drivetrain offers a standard bicycle chain and gears, for a simple and easy to maintain ride.
Will I fit properly on the Aurora Limited?
The Aurora Hub can be adjusted to suit Medium and Larger sized riders.. Take a closer look at our sizing chart and specifications on the product page. A great way to compare this to your existing bike is to measure your current saddle height straight down to the ground - this gives you a real number to compare to the specs on our website. If this measurement is over 35” - the Aurora Hub can remain at the top of your list.
