Up To 40

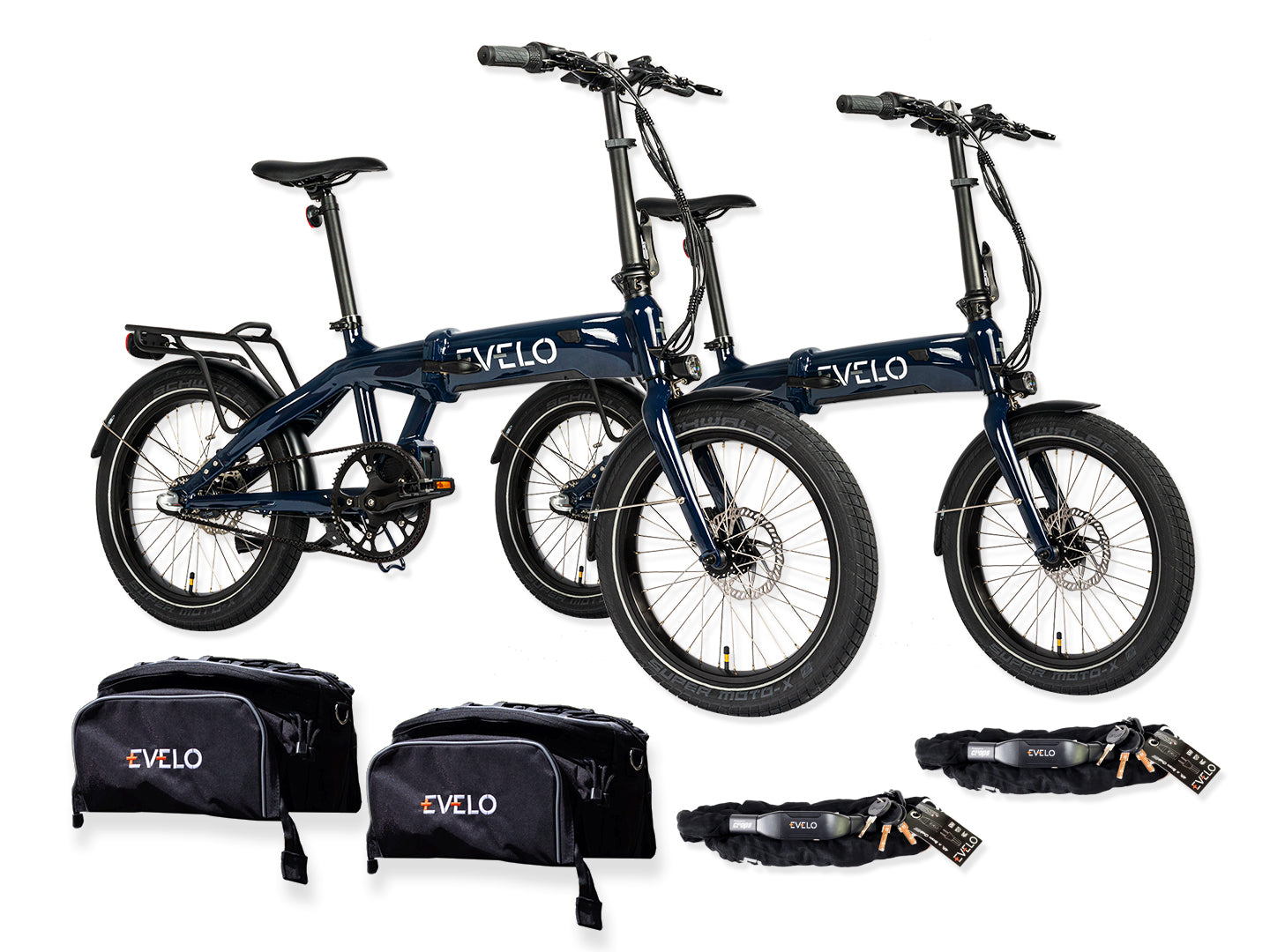

Get $700 Instant Savings with this Package
Get 2x EVELO Pannier Bags
With over 15 litres of cargo capacity, you’ll never find yourself without the things you need on your trip!
Two expandable & fold-out side pockets, perfect for smaller items, like your EVELO charger, and a cavernous mid section, with plenty of pockets for your gear. A shoulder strap is also included for convenient transportation off of the bicycle.
.
Plus 2x EVELO Quick Locks
Protect your new eBike with a secure pick-proof lock. It's lightweight for easy transport and 4ft long for convenient locking. Rolls up tight and fits right into your EVELO bag!
- Secure hardened 8mm chain links
- QuickLock system - key not needed to lock
- Heavy-duty nylon protective sleeve - prevents scratches to bike -
- Weighs 3lb 6.5oz

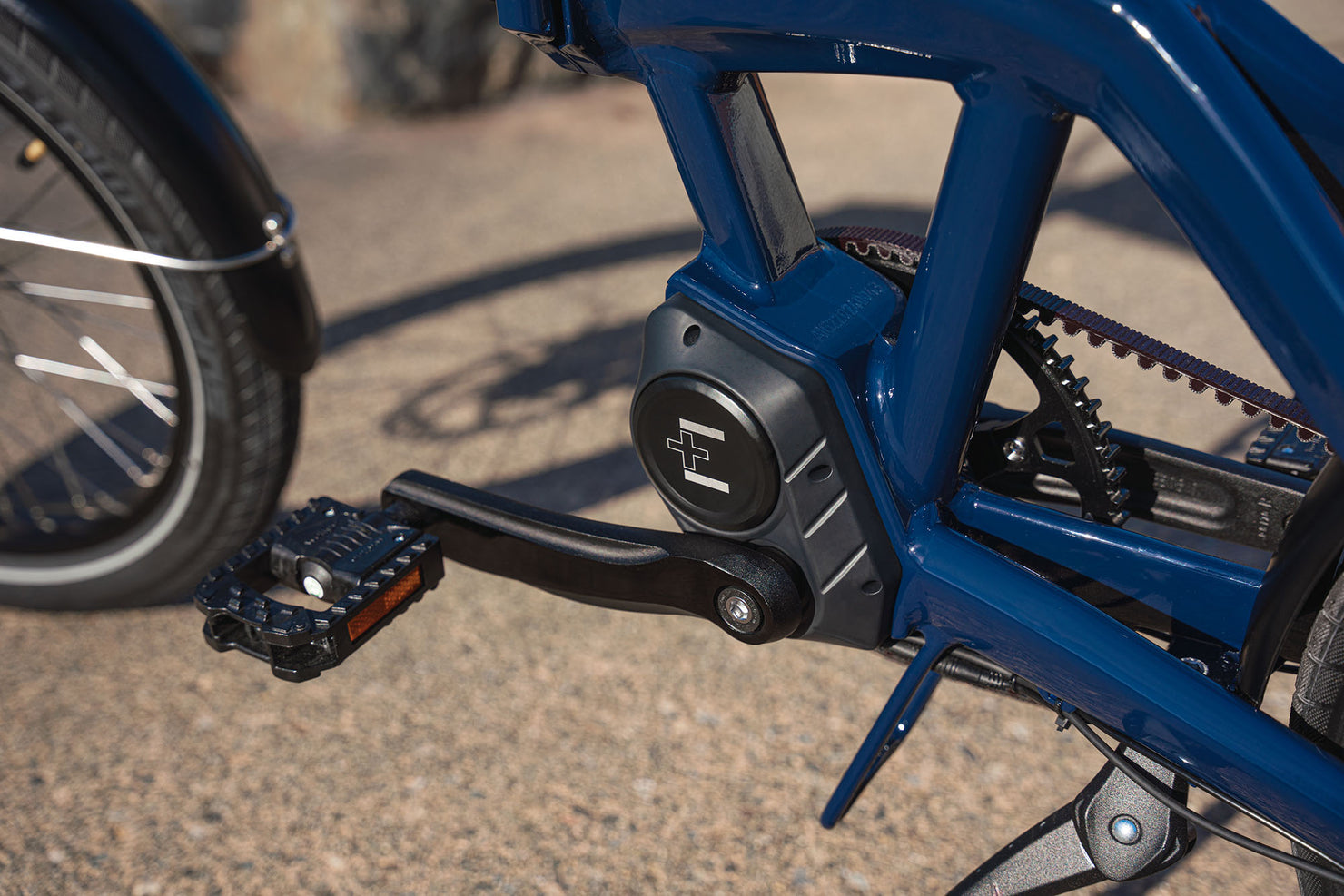

Lightweight with a powerful motor

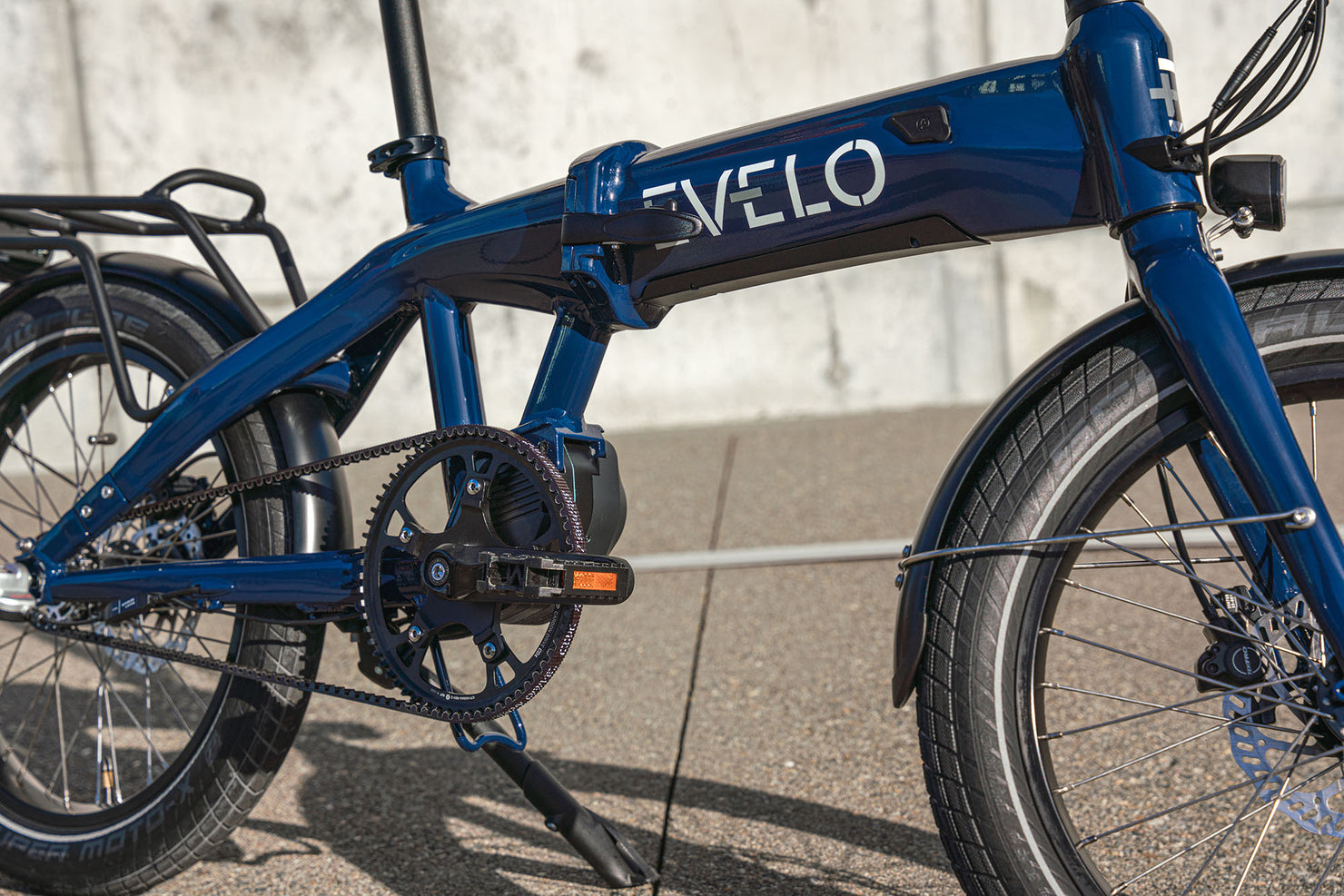

The Dash uses one of the highest tech drivetrain systems anywhere in the world, packing a phenomenal amount of power into one of the smallest and lightest motor systems available. This motor system features a torque sensing pedal assist system, as well as a handlebar thumb throttle so you can pedal as hard as you wish, or not at all. Take this power, put it through the Gates Belt Drive, and into the Shimano internally geared hub, and you have a bulletproof drivetrain ready to travel wherever the road takes you.
Short charge time and up to 40 miles of riding range
Go the extra mile with EVELO’s top-tier Li-ion cell technology. Our large semi-integrated frame battery offers extended range, and is easily removed for charging on or off your bicycle. With short charge times and up to 40 miles of range for your average rider, you can ride and explore more, and spend less time worrying about when to head back home.
Easily ride up any hills

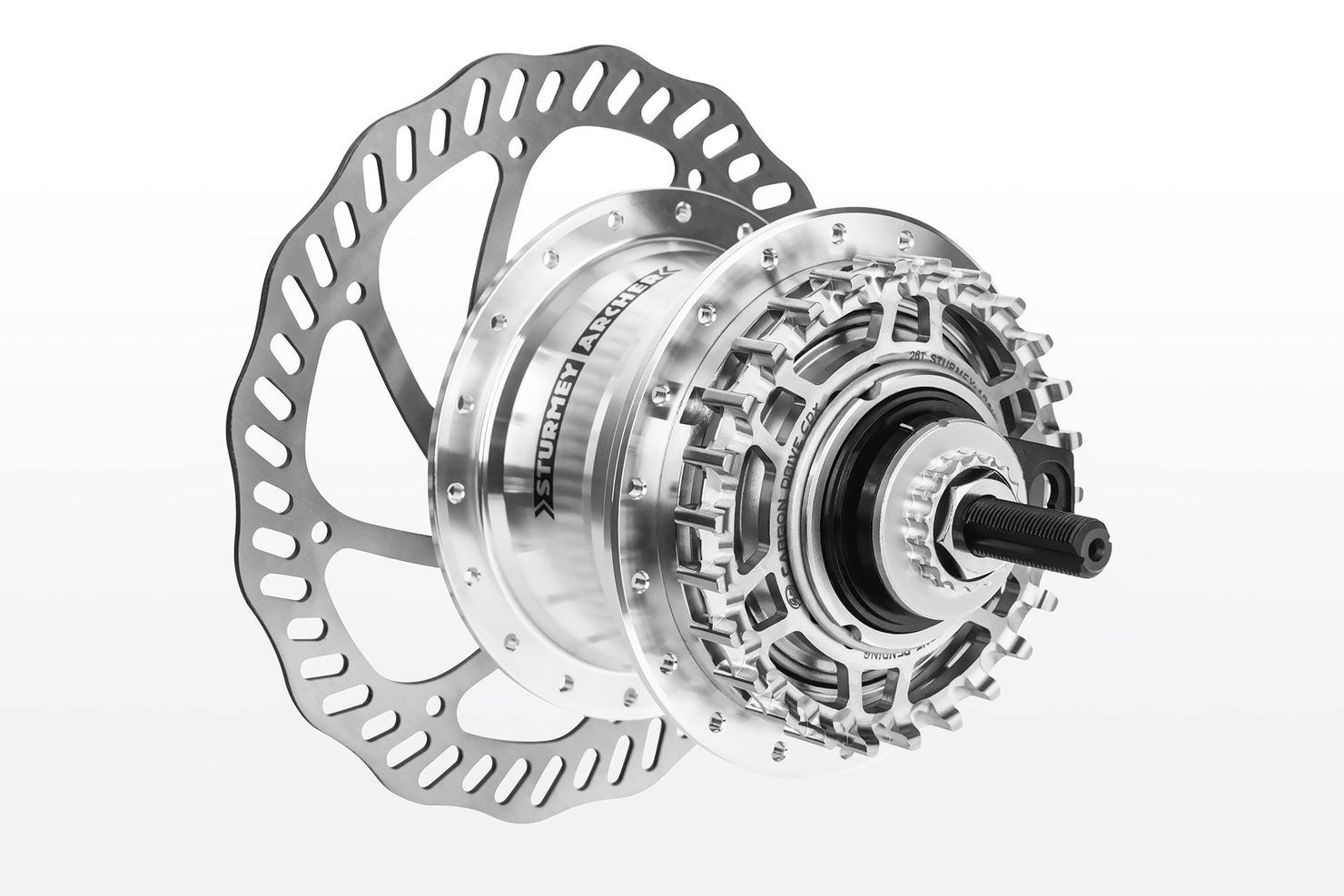

The latest Dash includes a wide range Sturmey Archer 5 Speed Internally geared rear hub, which offers both top speed and low gearing for easy hill climbs. You can expect smooth accurate shifts and maintenance free operation with this Sturmey Archer gearing system. Both Sturmey Archer and the Gates companies have been around for over a century, so you can count on years of reliable and maintenance free performance from the entire drivetrain of the Dash.
Bringing back the fun & freedom of riding bikes for the last 10-years.
Bringing back the fun & freedom of riding bikes for the last 10-years.

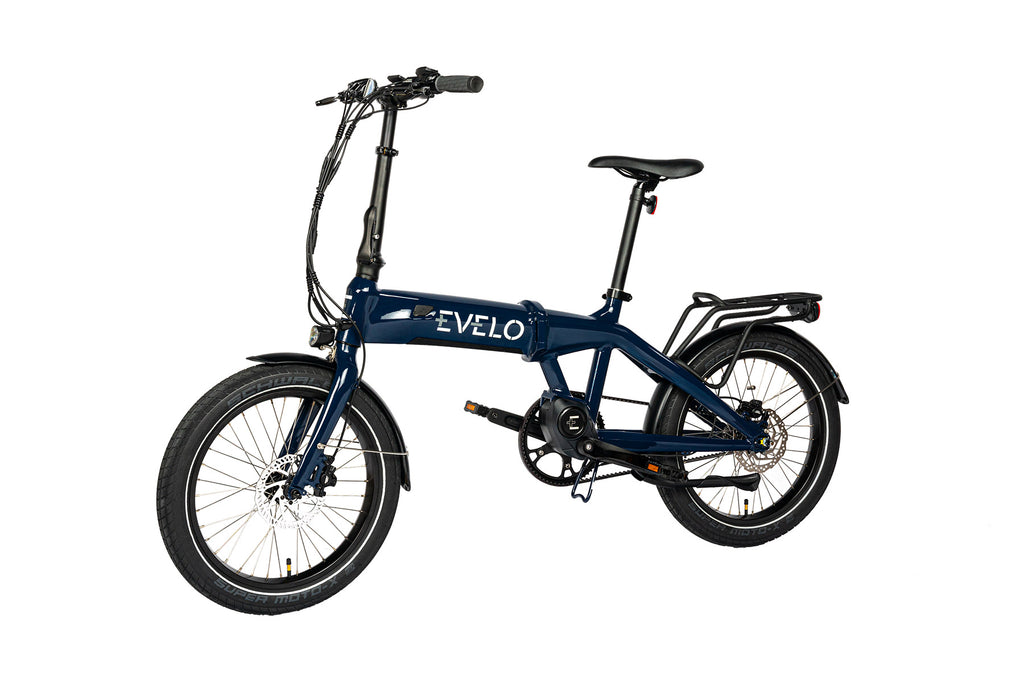

Product Specifications
Sizing & Dimensions
| SIZING |

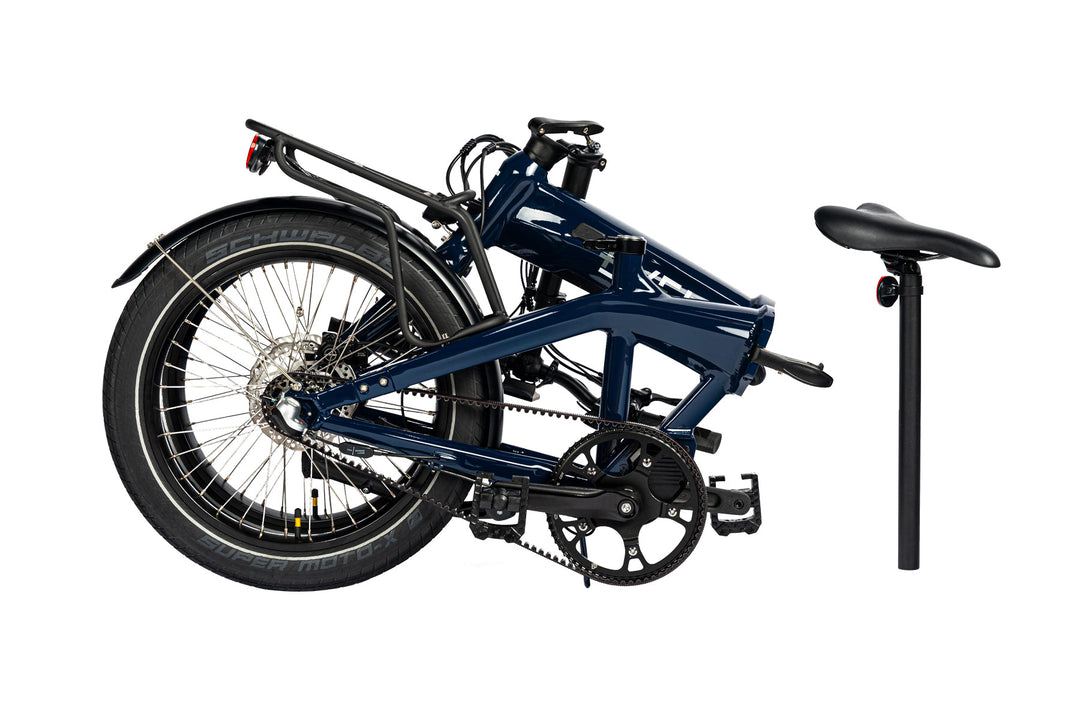

| Recommended Rider Heights 4'10" - 6'4" Seat Height (Minimum / Maximum) 30" / 40" Seat to Pedal (Lowest / Highest) 24" / 34" Standover Height 25" Reach (Saddle to Handlebar) 26" Handlebar Height 36" - 42.5" Total Length (Tire to Tire) 64" Wheelbase (Center to Center) 40" Folded Dimensions (Seatpost removed) 39" x 17.5" x 25.25" |
Bike Specifications
| Motor Transmission | Dapu M65X 4.8lb, 70 N.m torque, 350W Mid-Drive Motor w/ Torque Sensor Sturmey Archer RX-RK5 5 Speed Internally Geared Hub |
| Battery | 36V 10.5AH Samsung |
| Charger | 36V 2A Charger |
| Maximum Motor-Assisted Speed | Up to 20 MPH, Pedaling and Throttle Only |
| Range | Up to 40 Miles on Pedal-Assist or 20 Miles on Electric-Only |

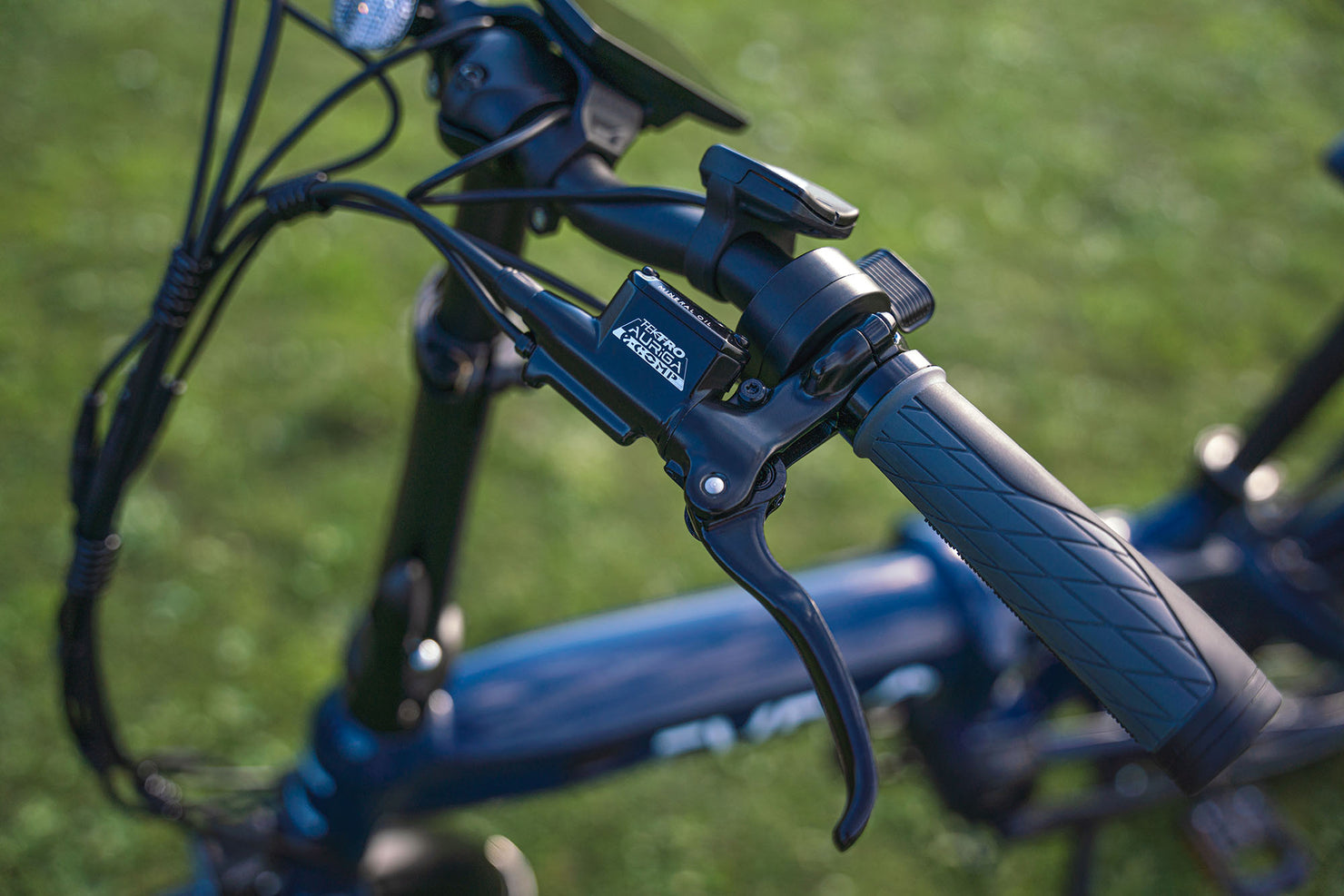

| Electric Assist | 5 levels of Pedal Assistance and handlebar mounted Throttle |
| Frame Fork | Custom Lightweight Aluminum Folding Frame with Integrated Battery Aluminum Alloy Fork with Fender Braze-Ons |
| Wheel | 36H 45mm wide Double Wall Alloy Rims with 13g Spokes |

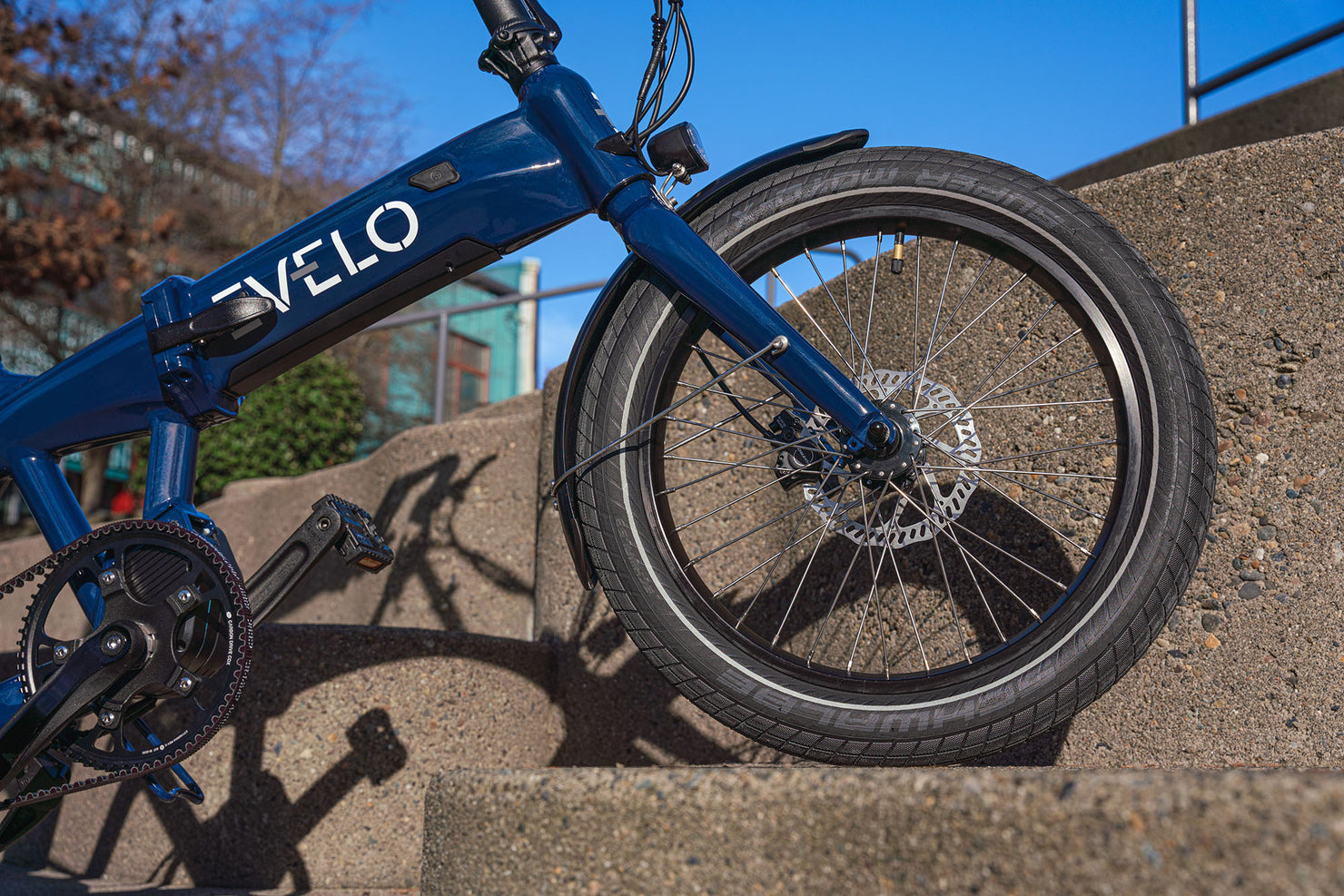

| Tire | Puncture Resist Schwalbe Moto X 20×2.4” Tires |
| Brakes | Tektro Hydraulic with motor cutoff switches, 160mm Rotors |

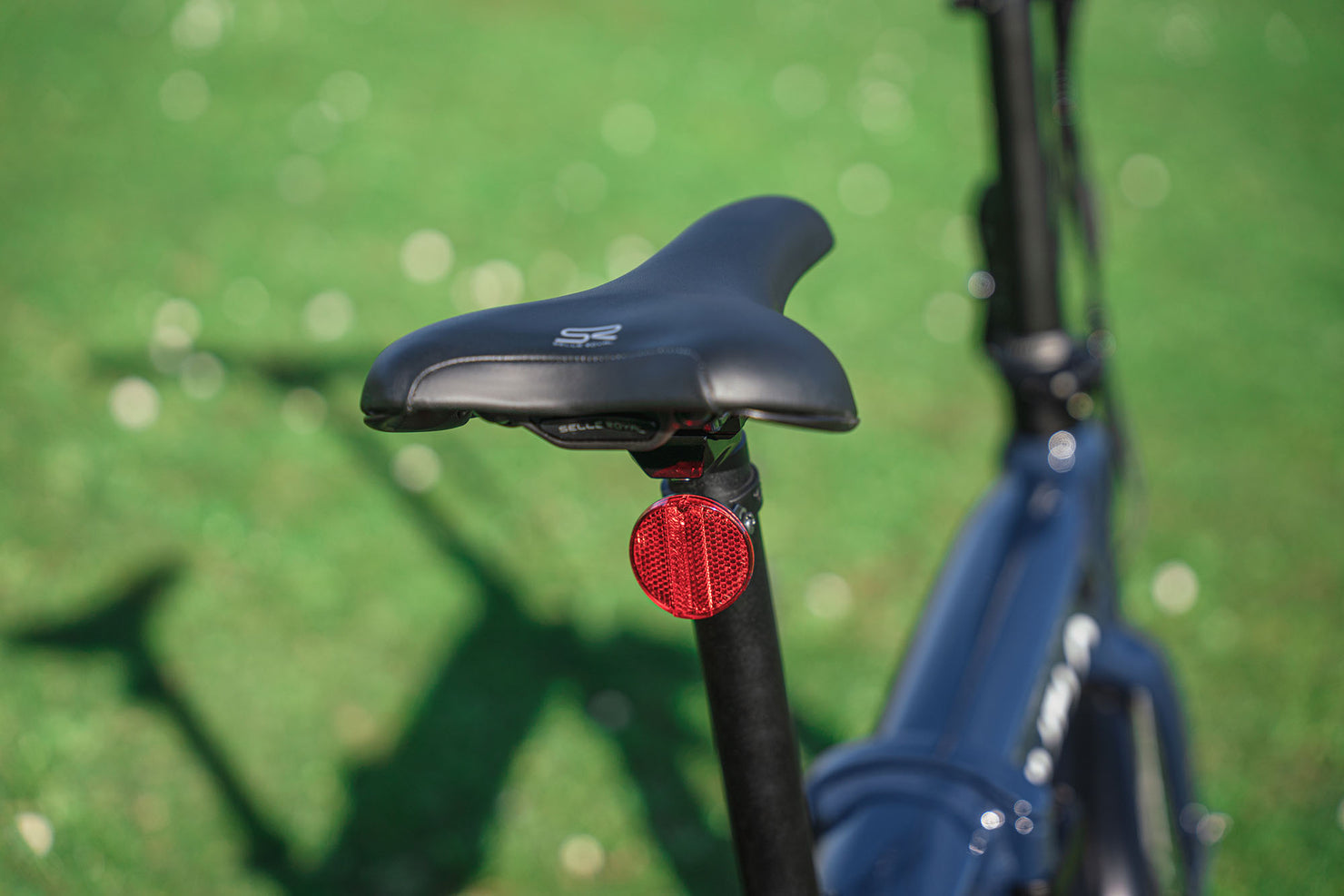

| Seat | Selle Royale Astro Comfort Saddle |
| Sturmey Archer Handlebar Mounted Grip Shift | |
| Stem Drivetrain | EVELO Quick Folding & Height Adjustable Gates CDX Heavy-Duty Carbon Belt, 70T, 20T Rear Cog |
| Speeds | 5 Speed Internally Geared Sturmey Archer RX-RK5 |

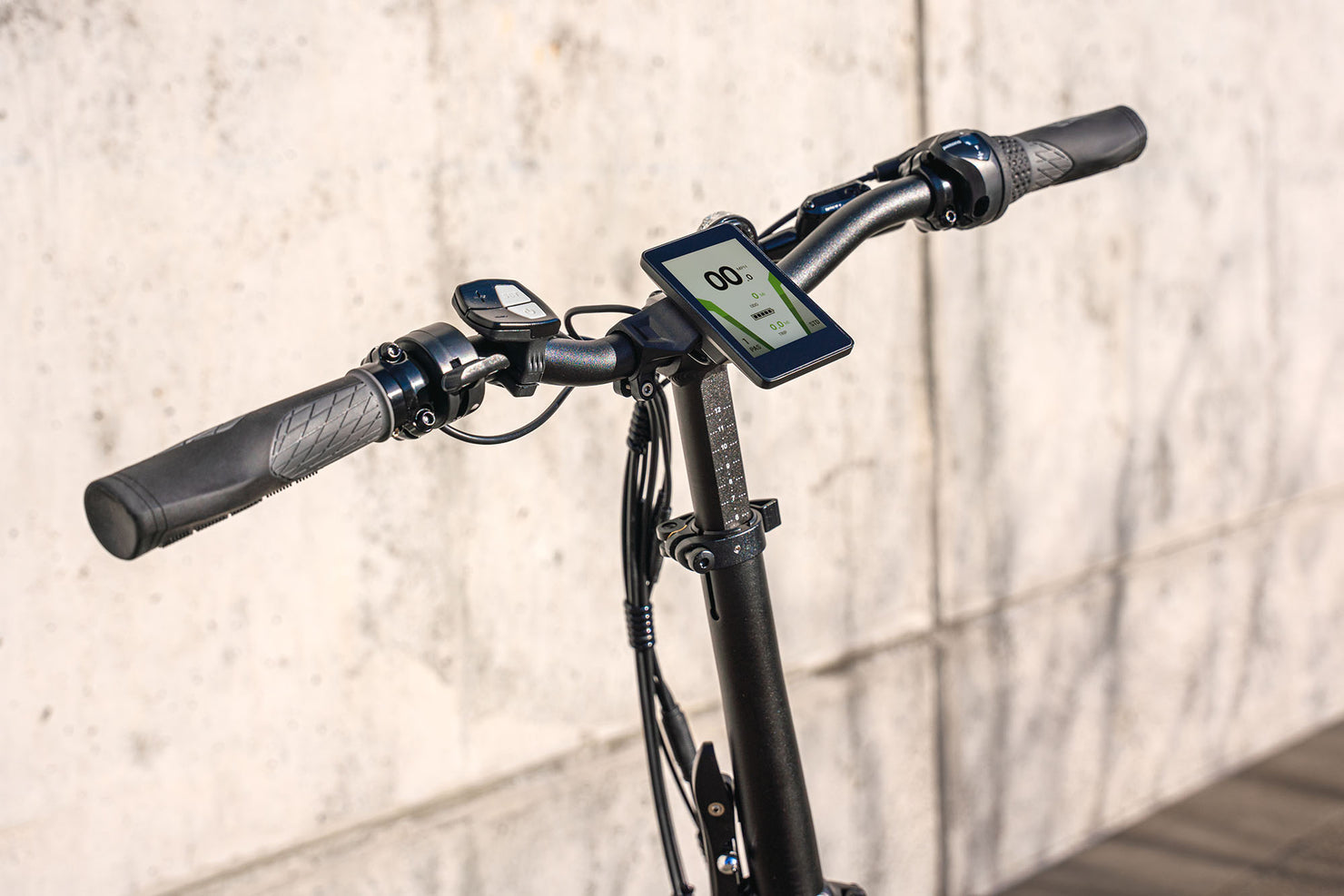

| Shifters | Sturmey Archer Handlebar Mounted Grip Shift |
| Pedals | Wellgo Quick Fold Pedals |

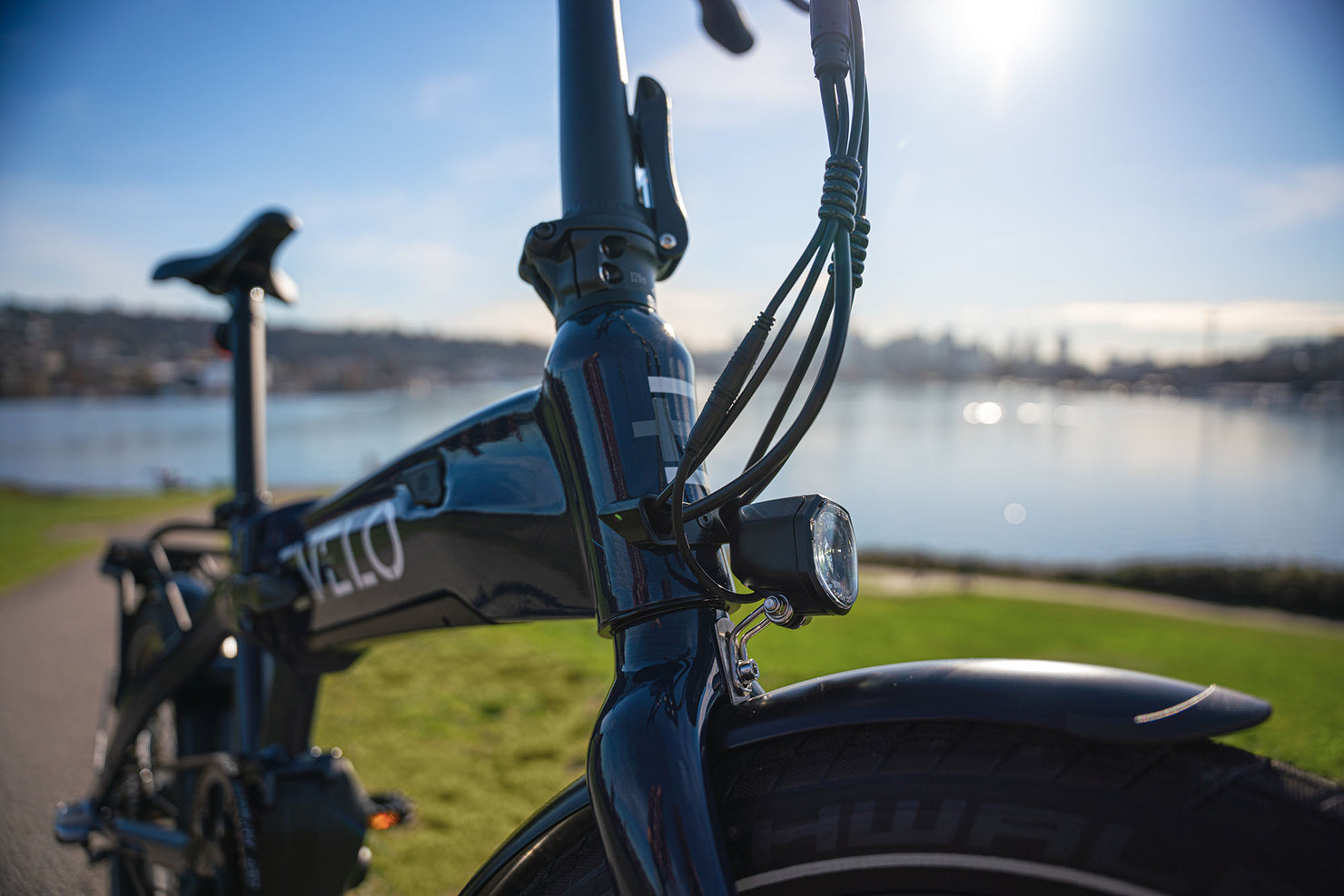

| Lights | Fully Integrated Front and Rear Lighting |

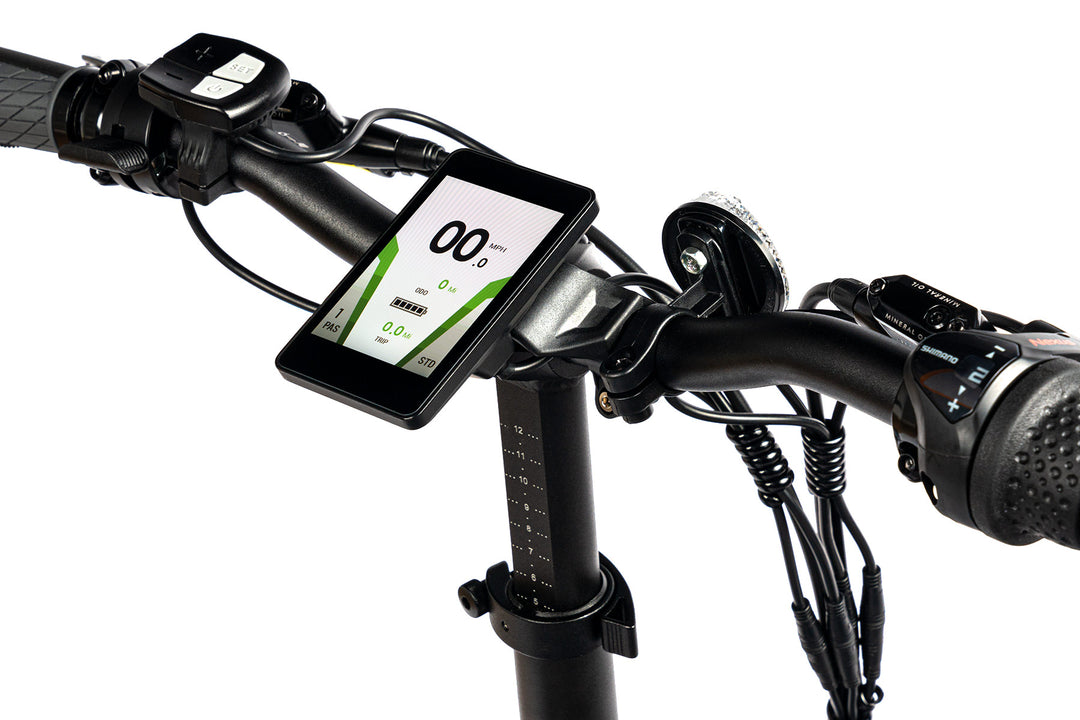

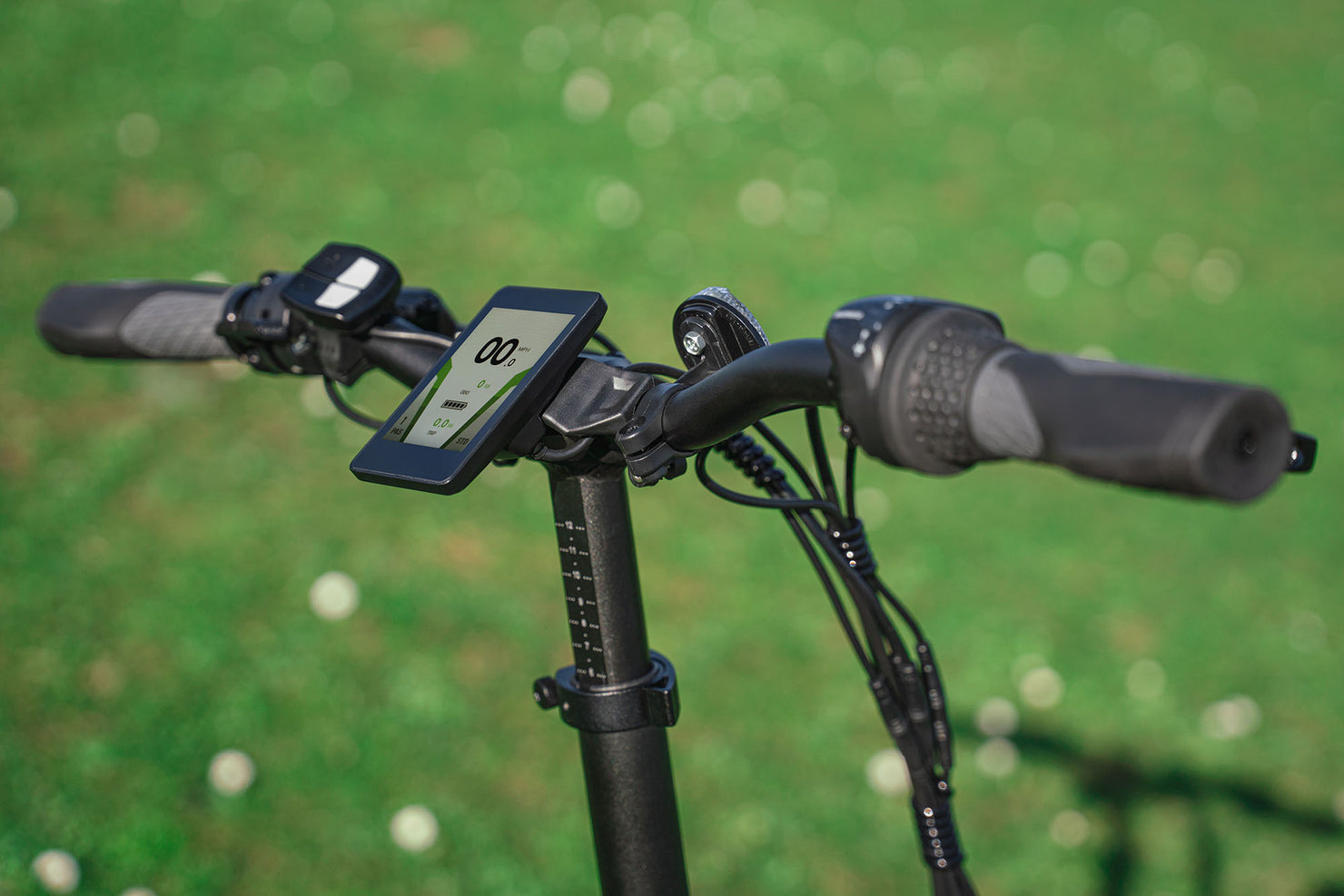

| Speedometer | Dapu C-800 IPS display |
| Fender | All Weather Front and Rear Fenders |

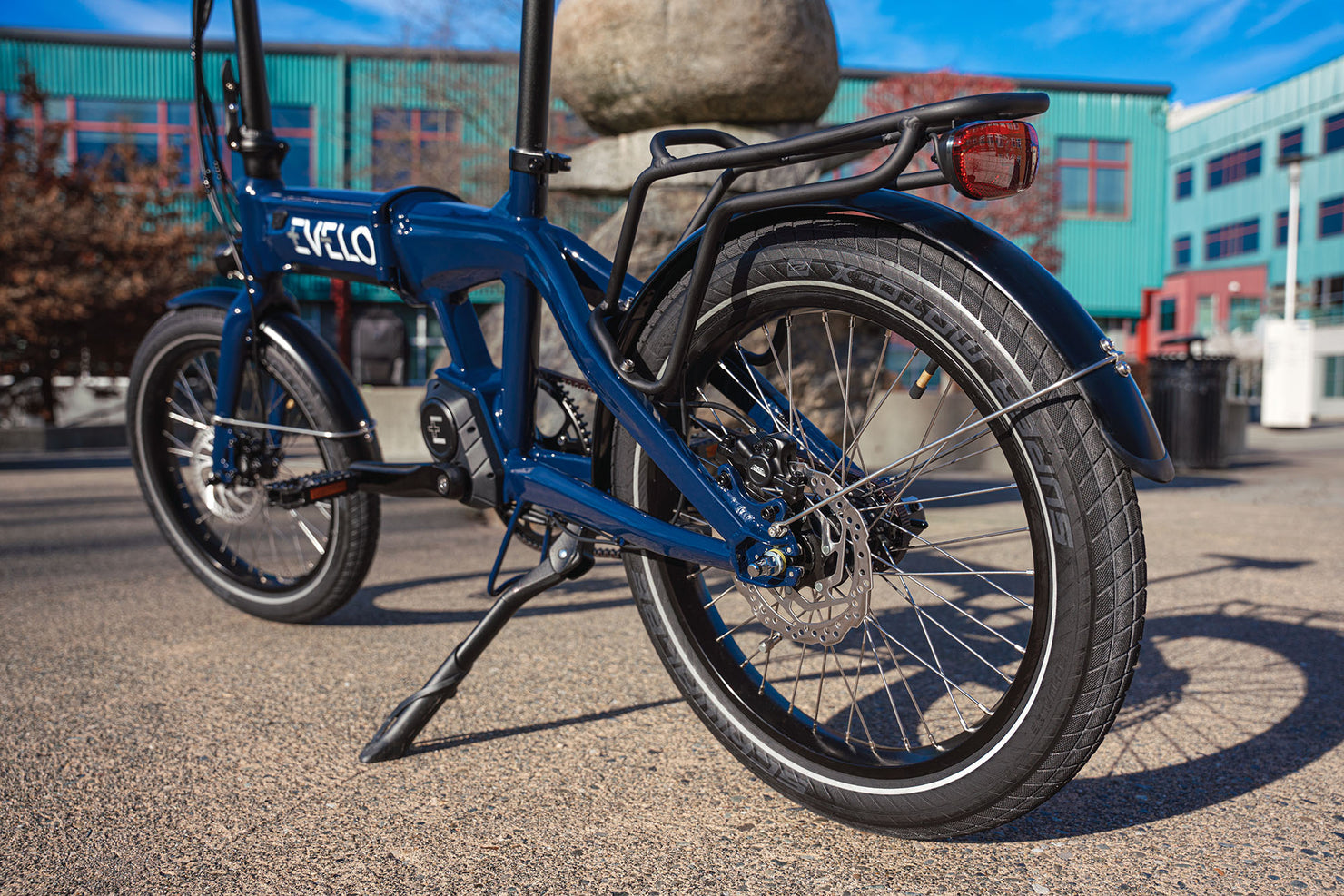

| Rear Rack | Cargo Rack, 45 lb. Weight Capacity |
| Bicycle Weight (without battery) | 44 lbs |
| Battery Weight | 4.5 lbs |

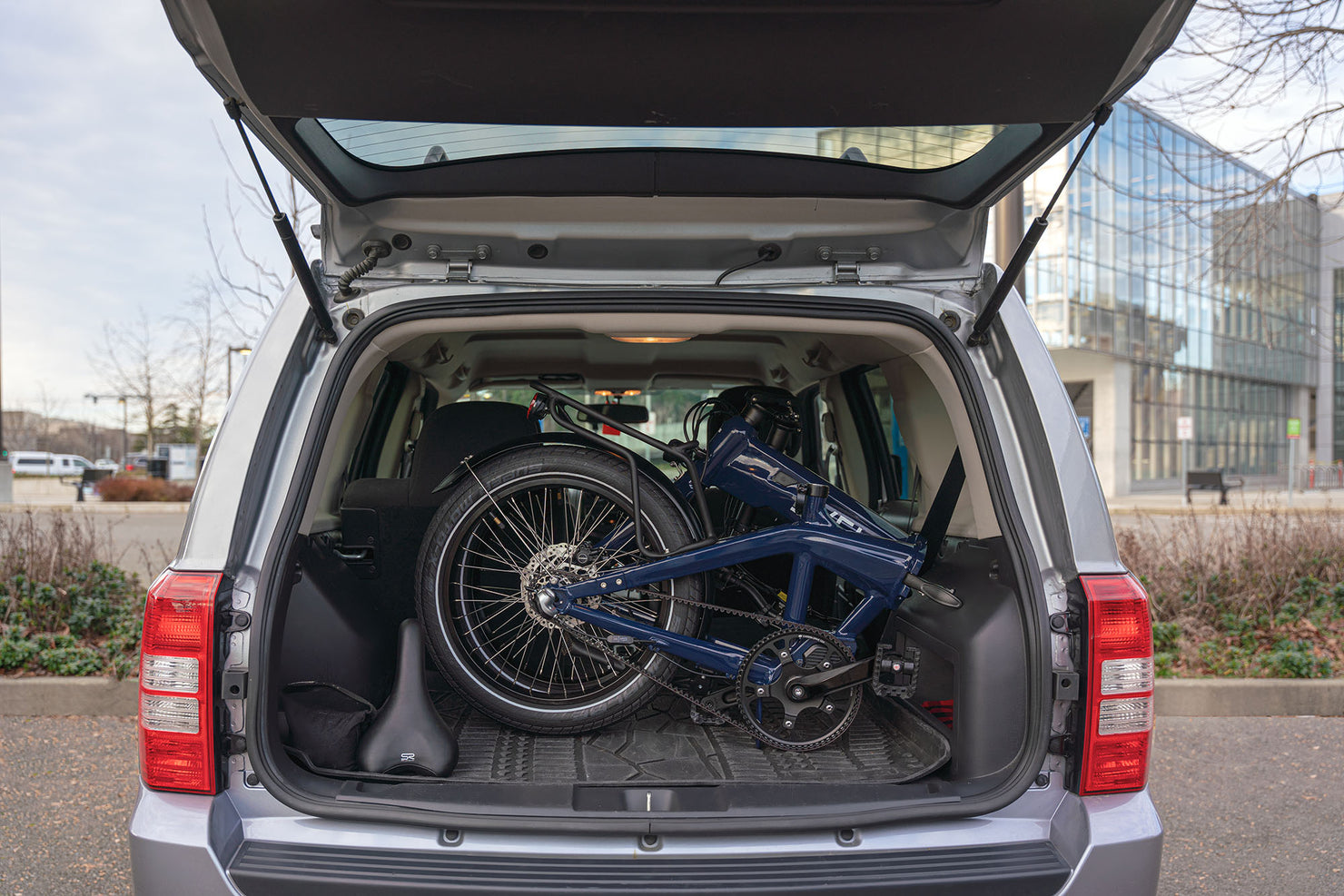

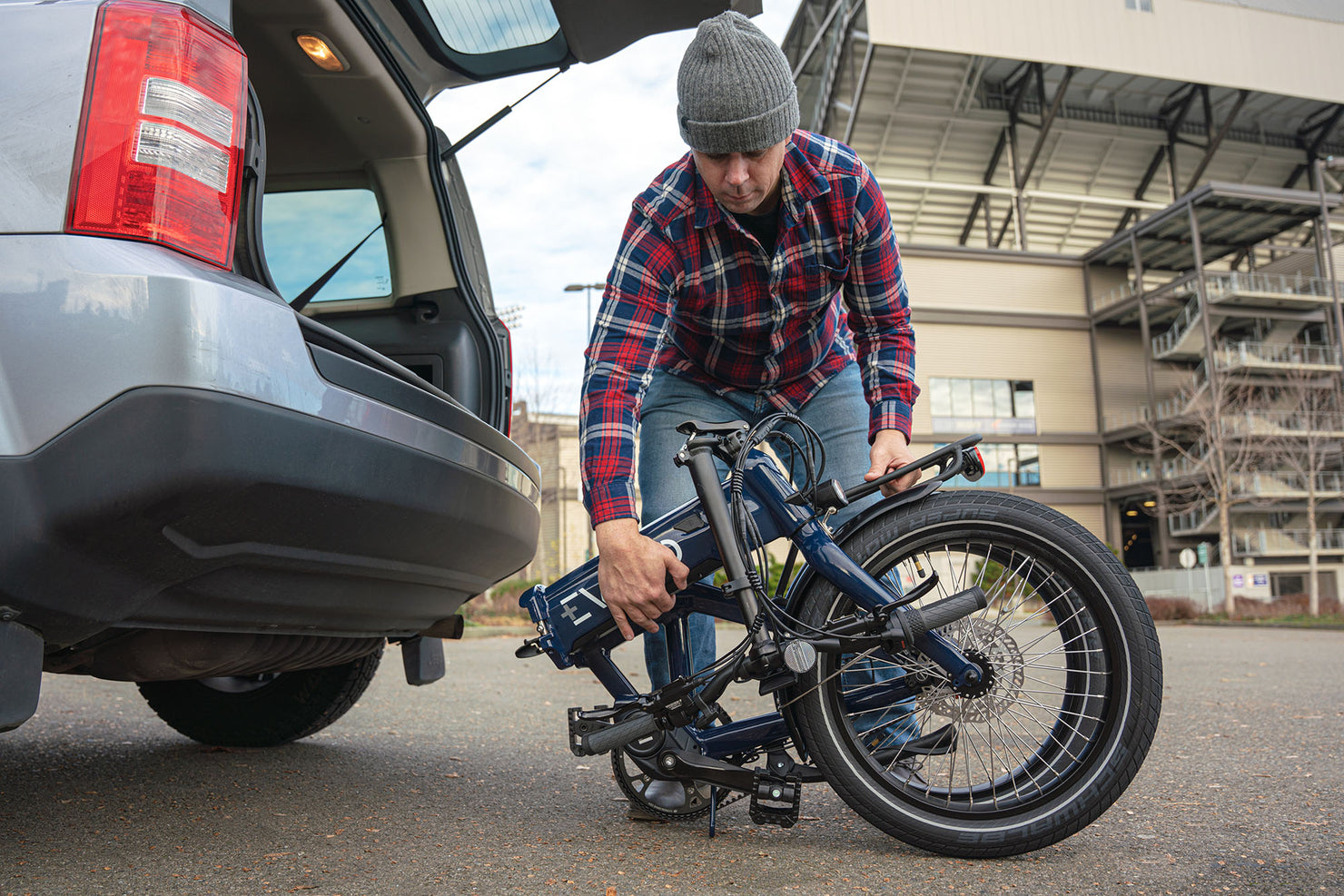

| Maximum Rider Weight Folded Dimensions | Recommended for riders up to 275 lbs. Larger riders can be accommodated – contact us for details. 39"x17.5"x25.25" (with seatpost removed) |
Rider Position
Balanced Position
Leaning slightly forward, with your weight balanced between your hands and the saddle. It gives you a slightly sportier, more agile handling, with a comfortable ride and no strain on your lower back.
Recommended Accessories
FAQs
Is the EVELO Dash a good choice for me?
Lightweight? Check. Folding? Check. Powerful Mid Drive, Gates Carbon Belt, Internally Geared Hub, Pedal Assistance and Throttle? Check. If you’re looking for a folding bike that is as versatile as you, the Dash will not disappoint.
Does the Dash have enough power for my terrain?
The Dash has a powerful mid drive motor system with ample amount of torque. Since it is lighter weight and has smaller wheels, we intentionally kept the drivetrain at 350 Watts, as it’s the most efficient and appropriate power to weight ratio for a folding bike. It’s smooth and buttery motor assistance will make you feel like a superhero on your ride.
Will I fit properly on the Dash?
The Dash, along with most folding bikes, come with an extra long seatpost to fit an extremely wide range of riders on the same frame design. The handlebars go up and down easily, as does the saddle itself. If you’re extra tall or on the shorter side - take a peek at the measurements available in the sizing section, and compare those numbers to your current bicycle.
